DC24V input 8 points (sink/source) & 8 x Relay output 2 x Plug-in Screw-Term.
Features:

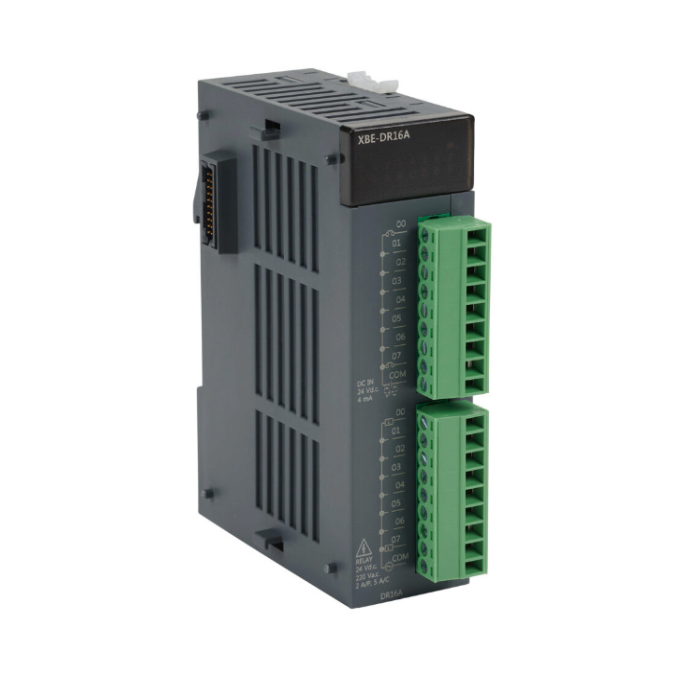

- Digital I/O Expansion Module XBE-DR16A XGB series DC24V input 8 points.
- Relay output 8 points.
- Expansion power requirement: 280 Ma.
- Compatible with SU, M, and U Type PLCs
Specifications:
Input:
- Current Consumption: 4mA @ 24VDC/point
- Operation Voltage Range: 20.4-28.8VDC (Ripple Rate < 5%)
- Input Resistance: 5.6kΩ
- On Voltage/On Current: 19VDC or more/2mA or More
- Off Voltage/Off Current: 6VDC or less/1mA or Less
- Response Time: Off → On 1/3/5/10/20/70/100ms (setting by CPU parameter) Initial Value: 3ms, On → Off 1/3/5/10/20/70/100ms (setting by CPU parameter) Initial Value: 3ms
- Insulation Voltage: 560VAC RMS/3 Cycle (Altitude 2000m)
- Insulation Resistance: 10MΩ
Output:
- Rated Input Voltage/Current: 24VDC: 2A (Resistive Load), 220VAC: 2A, 5A/COM
- Min. Load Voltage/Current: 5VDC/1mA
- Max. Load Voltage: 250VAC, 125VDC
- Off Leakage Current: 0.1mA (220VAC, 60Hz)
- Max. On/Off Frequency: 3,600 times/hr.
- Response Time: Off → On 10ms or less, On → Off 12ms or less
- Service Life Mechanical: 20 million Times or More
- Electrical Rated Load Voltage/Current: 100,000 Times or More; 200VAC/1.5A, 240VAC/1A 100,000 Times or More, 200VAC/1A, 240VAC/0.5A 100,000 Times or More; 24VDC/1A, 100VDC/0.1A 100,000 Times or More
