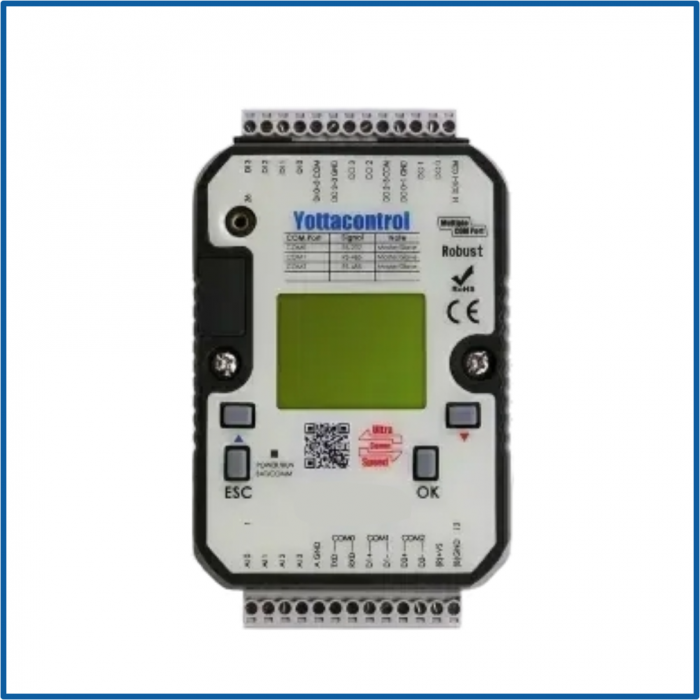

DCS Controller 2DI 2AI 2PT-100 2DO 2A0 DC LED
A-51x series conroller, support protocol:
- Modbus RTU/ASCII
- DC Power Supply
- CPU Standard
- 2DI/ 2DO (Transistors)/ 2AI (0/ 4~20mA)/ 2AI (PT - 100)/ 2AO (0/ 4~20mA)
- RS-485*1, USB2.0*1
Specifications:
- Operation Voltage: 10~30VDC/24VDC
- Digital Inputs: 2*DI(Isolation) status low:4VDC
- Analog Inputs: 2*Current(0/4~20mA)+2*PT-100(Range:-50~+200℃/Resolution:0.25℃)
- Digital Outputs: 2*Isolation(Transistor)
- Analog Outputs: 2*AO(0/4~20mA)
- Continuous Current: Transistor 1.75A(OCP/OTP/UVLO)
- Output Operating Frequency: Transistor:50KHZ
- RTC/ Hold During Power Off: Yes
- Operation Temperature: -20 to +75 °C
- Communication Ports: USB*1 & RS-485*1
- Communication Baud Rate: 2400~921600bps
- Degree Of Protection: IP20
- Base Controller IOs: 10 IOs
- Installation: 35 mm DIN rail or Flush mounting
- Dimension (W x H x D mm): 76.4*118.2*40.7 mm
- Communication Cable: CAB-MINIUSB60 or RS-485
- *D = LCM Type
| Brand | Yottacontrol |
|---|
