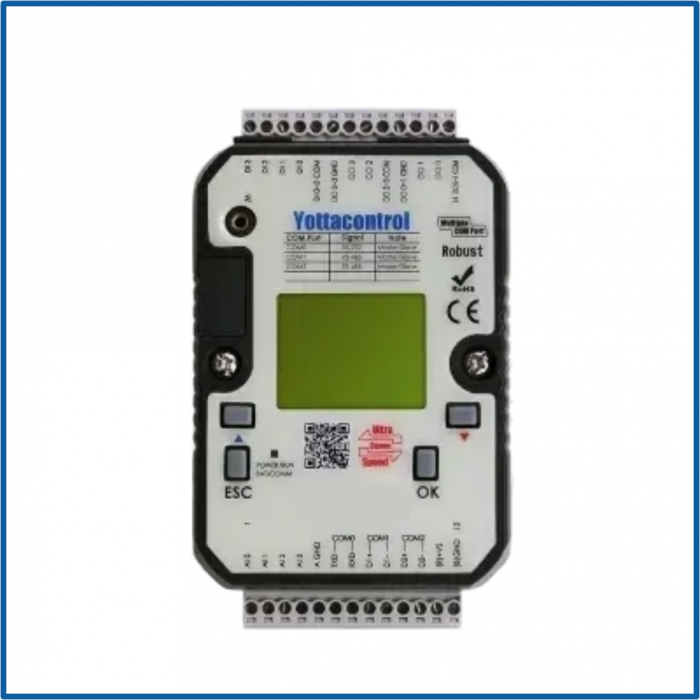

DCS Controller 4DI 4AI 4DO DC LCM R/O

ZAR 2,097.43
Out of stock
SKU
A-5189D

A-51x series controller, support protocol:

  • Modbus RTU/ASCII
  • DC Power Supply
  • CPU Display
  • LCM
  • 4DI/ 4AI/ 4DO, Relay Output
  • RS-232*1, RS-485*2, USB2.0*1

Specifications:

  • Operation Voltage: 10~30VDC/24VDC
  • Outputs: 4*Isolation (Relay)
  • Continuous Current: Relay: 5A (with resistive load), 2A (with inductive load)
  • Output Operating Frequency: Relay: 30HZ
  • Input Operating Frequency: 250KHZ (Total 1000KHZ)
  • RTC/ Hold During Power Off: Yes
  • Operation Temperature: -20 to +75 °C
  • Communication Ports: USB*1 & RS-485*2 & RS-232*1
  • Communication Baud Rate: 2400~921600bps
  • Degree Of Protection: IP20
  • Base Controller IOs: 12 IOs
  • Installation: 35 mm DIN rail or Flush mounting
  • Dimension (W x H x D mm): 76.4*118.2*40.7 mm
  • Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232
  • *D = LCM Type / *M = Micro-SD Type

Inputs:

  • 4*DI (Isolation) status low:<2VDC status high:>4VDC
  • 4*AI (0~10VDC)
More Information
Brand Yottacontrol
