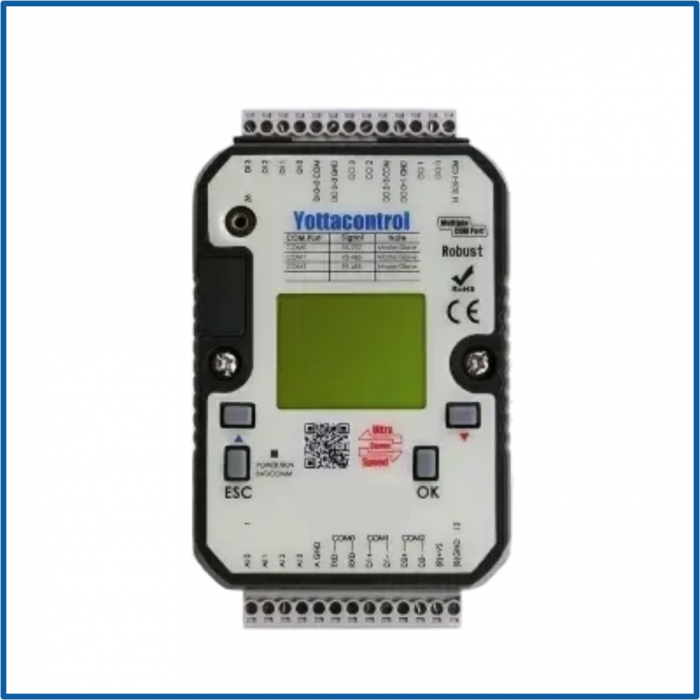

Specifications:

• Operation Voltage: 10~30VDC/ 24VDC
• Outputs: 4*Isolation (Transistor)
• Continuous Current: Transistor 1.75A (OCP/OTP/UVLO)
• Output Operating Frequency: Transistor: 100KHZ
• Input Operating Frequency: 250KHZ (Total 1000KHZ)
• RTC/ Hold During Power Off: Yes
• Operation Temperature: -20 to +75 °C
• Communication Ports: USB*1 & RS-485*2 & RS-232*1
• Communication Baud Rate: 2400~921600bps
• Degree Of Protection: IP20
• Base Controller IOs: 12 IOs
• Installation: 35 mm DIN rail or Flush mounting
• Dimension (W x H x D mm): 76.4*118.2*40.7 mm
• Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232
• *D = LCM Type / *M = Micro-SD Type

Inputs:

• 4*DI (Isolation)
• Status low: <2VDC
• Status high: >4VDC
• 4*AI (0~10VDC)
