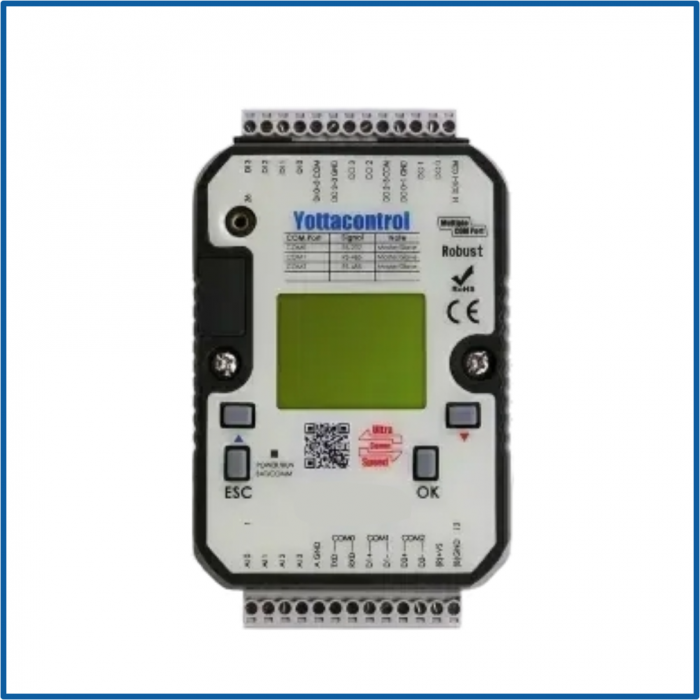

DCS Controller 8DI 4DO DC LED T/O
A-51x series controller, support protocol:
- Modbus RTU/ASCII
- DC Power Supply
- CPU Standard
- LED indicator
- 8DI/ 4DO, Transistor Output
- RS-232*1, RS-485*2, USB2.0*1
Specifications:
- Operation Voltage: 10~30VDC/24VDC
- Inputs: 8*DI(Isolation) status low:<2VDC status high:>4VDC
- Outputs: 4*Isolation(Transistor)
- Continuous Current: Transistor 1.75A(OCP/OTP/UVLO)
- Output Operating Frequency: Transistor:100KHZ
- Input Operating Frequency: 250KHZ(Total 1000KHZ)
- RTC/ Hold During Power Off: Yes
- Operation Temperature: -20 to +75 °C
- Communication Ports: USB*1 & RS-485*2 & RS-232*1
- Communication Baud Rate: 2400~921600bps
- Degree Of Protection: IP20
- Base Controller IOs: 12 IOs
- Installation: 35 mm DIN rail or Flush mounting
- Dimension (W x H x D mm): 76.4*118.2*40.7 mm
- Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232
- *D = LCM Type / *M = Micro-SD Type
| Brand | Yottacontrol |
|---|
