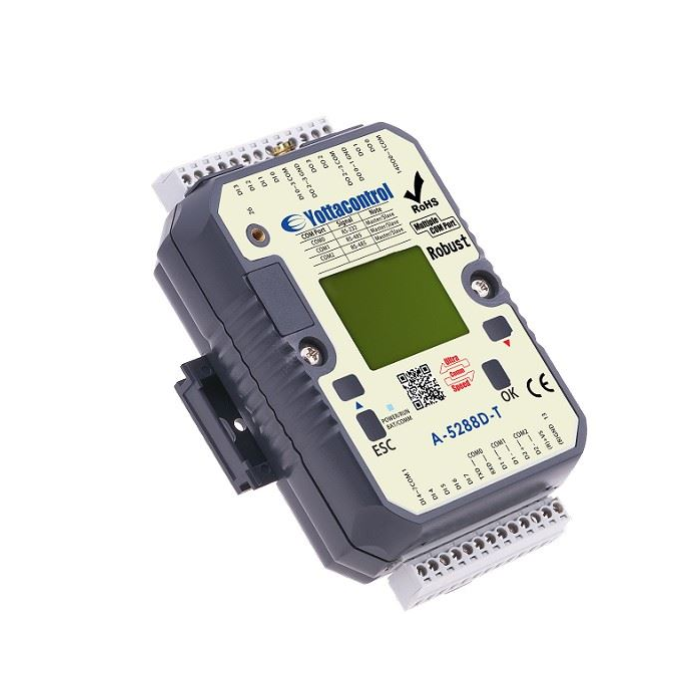

DCS WIFI Controller 8DI 4DO DC LCM T/O
A-52x series controller, support protocol:
- Modbus RTU/ASCII, Modbus over TCP/IP; Modbus over UDP/IP
- Wi-Fi Display CPU
- LCM
- DC Power Supply
- 8DI/4DO, Transistors output
- Wi-Fi*1, RS-232*1, USB2.0*1
Specifications:
- Operation Voltage: 10~30VDC/24VDC
- Outputs: 4*Isolation (Transistor)
- Continuous Current: Transistor: 1.75A (OCP/OTP/UVLO)
- Output Operating Frequency: Transistor: 100KHZ
- Input Operating Frequency: 250KHZ (Total 1000KHZ)
- RTC/ Hold During Power Off: Yes
- Operation Temperature: -20 to +75 °C
- Communication Ports: Wi-Fi*1 & USB*1 & RS-485*2 & RS-232*1
- Communication Baud Rate: 2400~921600bps
- Degree Of Protection: IP20
- Base Controller IOs: 12 IOs
- Installation: 35 mm DIN rail or Flush mounting
- Dimension (W x H x D mm): 76.4*118.2*40.7 mm
- Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232 or Wi-Fi
Inputs:
- 8*DI (Isolation)
- Status low: < 2VDC
- Status high: >4VDC
| Brand | Yottacontrol |
|---|
