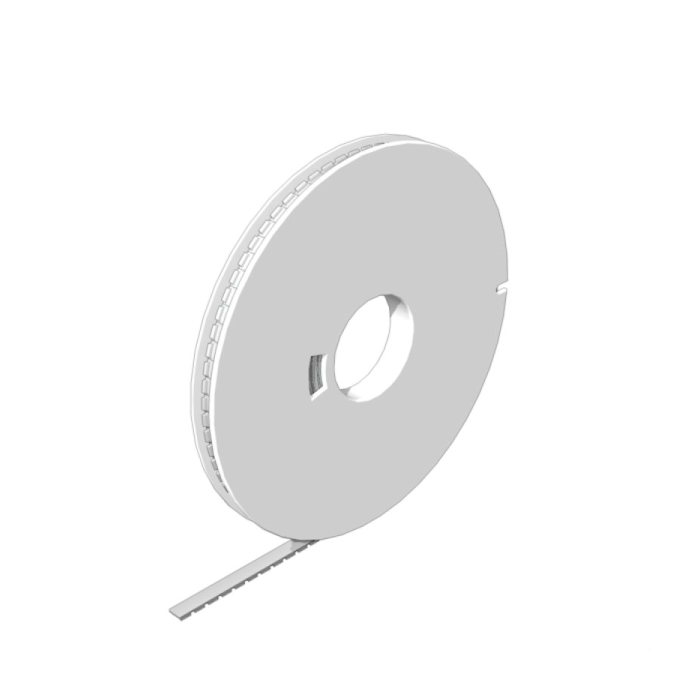

DEK 5/6 MM WS
DEK 5/6 MM WS/DEK:
- Multi-Mark terminal markers make use of a unique two-component composite material.
- The strong base contour of the marker clamps securely into the connector.
- The elastic surface finish makes the marker simple to mount.
- This carefully perforated material allows the strips to be stretched to meet the little spacing variances that tend to accumulate, particularly with long terminal blocks.
- Another advantage is the surface material's high printability, which ensures long-lasting and wear-resistant labelling.
- A print resolution of 300 dpi results in a legible script.
Your advantages with multi-Mark:
- Printing with a firm hold and durability.
- Continuous strips save installation time.
- Mounting is easy thanks to an innovative composite material.
- Large label field for maximum legibility.
- Manufacturer independence provides high flexibility.
Specifications dimensions and weights:
- Height: 5 mm.
- Height (inches): 0.197 inch.
- Width: 6 mm.
- Width (inches): 0.236 inch.
- Net weight: 0.1 g.
Temperatures:
- Operating temperature range: -50 - 90 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Application/manufacturer: Weidmueller.
- Colour: white.
- compatible printer: THM MULTIMARK, THM MULTIMARK PLUS.
- Halogen: No.
- Material: PC-ABS, TPU.
- Operating temperature range: -50 - 90 °C.
- Operating temperature range, max.: 90 °C.
- Operating temperature range, min.: -50 °C.
- Orientation of print: horizontal and vertical.
- Printed characters: without.
- Size of labelling field: 4.5 x 5.7 mm.
- UL 94 flammability rating: V-2.
- Version: halogen-free.
- Width: 6 mm.
| Brand | Weidmuller |
|---|
