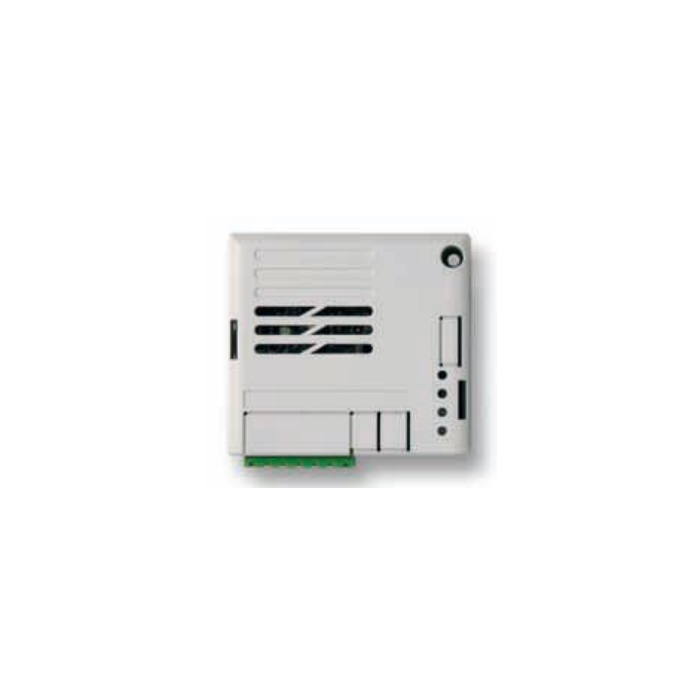

DeviceNet Communication card up to 500Kbps 64-nodes max 500m Free/Bus Topology
Description:
- The SV-iS7 inverter is connected to the Device Net network via an SV-iS7 Device Net connection card.
- With the Device Net communication card, the inverter can be monitored and operated by a PLC's sequence program or an optional master module.
- When one or more inverters are linked and managed over a communication connection, installation costs can be lower than when no communication is involved.
- Additionally, quick maintenance and a shorter installation time are made possible by simple wiring.
- The inverter may be controlled by a wide range of peripheral devices, including PLCs, and factory automation is facilitated by its ability to be coupled with a wide range of systems, including PCs.
Specifications:
- Communication speed: 125kbps 250kbps 500kbps
- Free/Bus topology
- Max. 64 node connection points
- Max. 500m (1640 ft.) transmission distance (125kbps)
- Exterior power source: Input Voltage: 11 ~25V DC, Current consumption: Max. 60Ma
- Device type: AC Drive
- Terminating resistor: 120 ohm 1/4W Lead Type
iS7 Series:
- With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more potent performance.
- Focusing on an intuitive user interface and environmentally friendly features, the iS7 has a broad graphic LCD keypad with support for both user and macro groups, as well as an electro-thermal function for motor protection and input/output phase loss protection.
- A speed-precision-driven vector algorithm and a competitive and powerful low-speed torque control are features of iS7 technology.
- 100:1 speed control range
- Very low torque control capability: actual torque of 150% at 0.1 Hz
- Maximum torque control capacity inside the range of restoration
| Brand | LS Electric |
|---|
