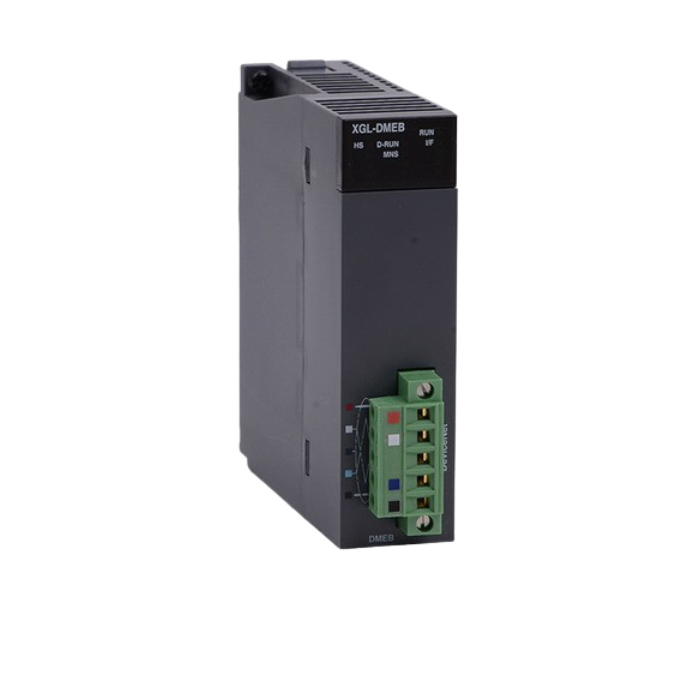

XGT Network Module, DeviceNet system, 125/250/500 kbps
Features:
- Protocol for Device Net.
- Direct Dnet system control over a range of I/O devices.
- One master module can control up to 63 subordinate modules.
- Multi-drop and T-branch connections are examples of flexible network configuration.
- Ability can be connected to different slave modules and other master modules.
- Supplying the ability to automatically scan networks and a variety of data using the configuration tool (N Configuration).
- Using the high-speed link parameter for communication.
- Connectable to a range of slave I/O, including additional modules (e.g., position controller, A/D module, actuator, switch, valve, optimal switch, etc.).
- Automated slave module tracking within the network: auto-scan (XG5000).
- Simple expansion: 12 master modules maximum.
- Network configuration using the N configurator/XG5000 (monitoring, diagnosing, and setting parameters).
Specifications:
- Transmission speed: 125/250/500kbps
- Transmission type: I/O Connection: G2, UCMM, I/O Communication: Poll, Bit strobe, COS, Cyclic.
- Communication distance: Thick cable: 500 (125kbps)/250 (250kbps)/100 (500kbps), Thin cable: 100 (125/250/500kbps)
- Terminal Resistance (W): 121 (1%, 1/4W)
- Data Packet: 0-8 Bytes
- Message Access control: CSMA/NBA
- Network structure: Trunk/ drop line power/ signal cable inside the identical network cable.
- Bus type: Poll type
- Max. number of Nods: Up to 64 (including master) MAC IDs (MAC identifier)
- System features: insertion and removal of node available in voltage on status
- Operation Voltage: DC 24V
- Master/Slave Operation: only in master
- XG5000 Send/Receive period: Select among 20ms, 50ms, 100ms, 200ms, 500ms, 1s, 5s, and 10s (Default: 20ms)
- Max. communication point: Send: 128,520 points, Receive: 128,520 points, 16,065 bytes respectively.
- Max. block number: 63 (Setting Range: 0-62)
- Max. point number per block: 2040 points (225 bytes)
- Max. modules installed: Up to 12 (available on basic base and added base)
- Internal-consumed current: 350mA.
| Brand | LS Electric |
|---|
