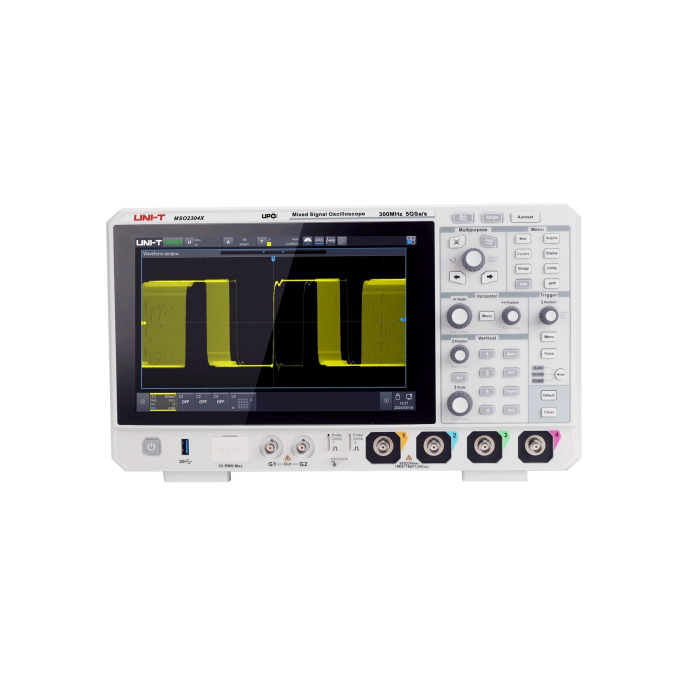

Digital Oscilloscopes, MSO2104X 100MHz 4Ch Mixed Signal Oscilloscope
MSO2000X Series, Digital Oscilloscopes:
- 4CH+16MSO.
- BW: 100, 200, and 300 MHz
- Memory depth is 100 Mpts/CH.
- Waveform capture rate: 500,000 wfms/s (in sequence mode: 2,000,000 wfms/s).
- 9-in-1: Digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency counter, protocol analyser, bode plot analyser, and power analyser.
- Histograms and trend charts are added by parameter measurement statistics.
Specifications:
- MSO2000X Series, Digital Oscilloscopes.
- Scope Type MSO.
- Bandwidth 100MHz
- Channels 4Ch.
- Scope Sample Rate 5.0GSa/s.
- Memory Depth 100Mpts.
- Refresh Rate 2,000,000wfms/s.
- Vertical Scale @1MΩ 500μV/div to 10V/div.
- Automatic Measurements 54.
- Included Bus Protocols RS232 UART I2C SPI RS422 RS485.
- Optional Bus Protocols CAN-FD Flex Ray SENT Audio.
- Logic Pod Included Optional.
- Signal Generator Function Optional.
- Frequency Meter 7-bit.
- Display Size (in) 10.1in.
- Touchscreen Yes.
- Warranty 3 years.
- Certifications CE/cETLus/UKCA.
| SKU | MSO2104X |
|---|---|
| Brand | UNI-T |
