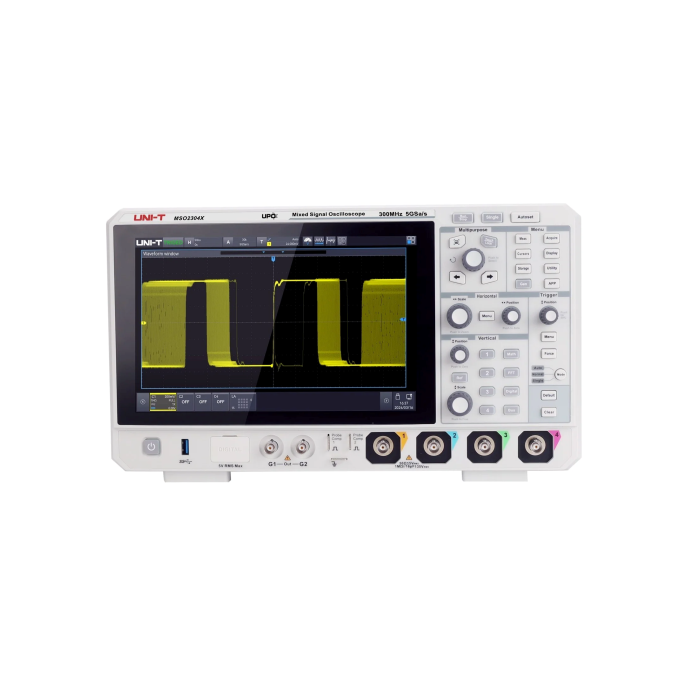

Digital Oscilloscopes, MSO2204X 200MHz 4Ch Mixed Signal Oscilloscope
MSO2000X Series, Digital Oscilloscopes:
- 4CH+16MSO.
- BW: 100, 200, and 300 MHz
- 100 Mpts/CH is the memory depth.
- 500,000 wfms/s waveform capture rate (sequencing mode: 2,000,000 wfms/s).
- Nine-in-one: digital oscilloscope, logic analyser, digital voltmeter, spectrum analyser, frequency counter, protocol analyser, Bode plot analyser, power analyser, and function/arbitrary waveform generator.
- Histograms and trend charts are added by parameter measurement statistics.
Specifications:
- MSO2000X Series, Digital Oscilloscopes.
- Scope Type MSO.
- Bandwidth 200MHz
- Channels 4Ch.
- Scope Sample Rate 5.0GSa/s.
- Memory Depth 100Mpts.
- Refresh Rate 2,000,000wfms/s.
- Vertical Scale @1MΩ 500μV/div to 10V/div.
- Automatic Measurements 54.
- Included Bus Protocols RS232 UART I2C SPI RS422 RS485.
- Optional Bus Protocols CAN-FD Flex Ray SENT Audio.
- Logic Pod Included Optional.
- Signal Generator Function Optional.
- Frequency Meter 7-bit.
- Display Size (in) 10.1in.
- Touchscreen Yes.
- Warranty 3 years.
- Certifications CE/cETLus/UKCA.
| SKU | MSO2204X |
|---|---|
| Brand | UNI-T |
