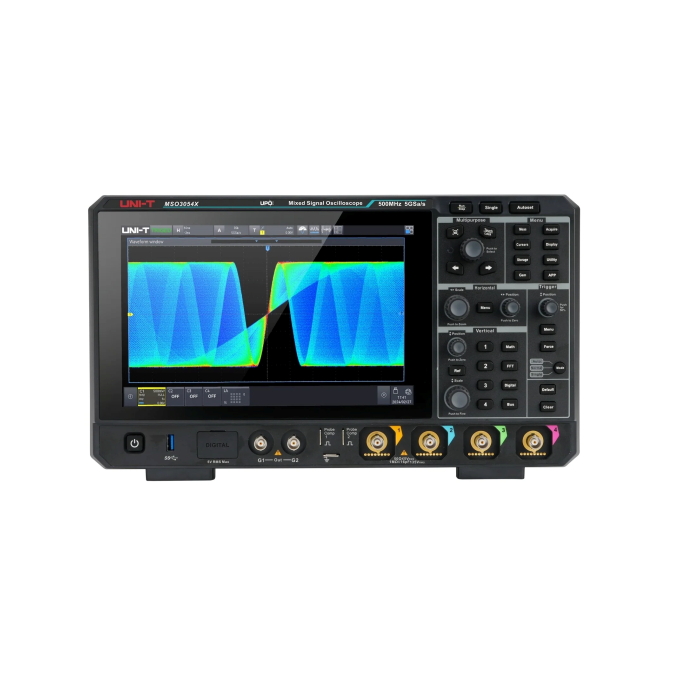

Digital Oscilloscopes, MSO3034X 350MHz 4Ch Mixed Signal Oscilloscope
MSO3000X Series Digital Oscilloscopes:
- 4CH+16MSO.
- BW: 500/350 MHz
- Memory depth: 500 MB.
- Waveform capture rate is 800,000 wfms/s (sequence mode: 2,000,000 wfms/s).
- The 9-in-1 device includes a digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency counter, protocol analyser, Bode plot analyser, and power analyser.
- Parameter measurement statistics include histograms and trend charts.
- FFT enhanced by 4 million points.
- 54 waveform parameter measurements.
- Multi-window display.
- Zone trigger function.
- Ultra Phosphor 3.0 display technology.
- 10.1-inch 1280x800 HD capacitive touchscreen.
- Supports SCPI programmable instrument standard commands.
- Embedded Web Server.
Specifications:
- MSO3000X Series Digital Oscilloscopes.
- Scope Type MSO.
- Bandwidth 350MHz
- Channels 4Ch.
- Scope Sample Rate 5.0GSa/s.
- Memory Depth 500Mpts.
- Refresh Rate 2,000,000wfms/s.
- Vertical Scale @1MΩ 500μV/div to 10V/div.
- Automatic Measurements 54.
- Included Bus Protocols RS232 UART I2C SPI RS422 RS485.
- Optional Bus Protocols CAN-FD Flex Ray SENT Audio MIL-STD-1553B ARNIC429 Manchester.
- Logic Pod Included Optional.
- Signal Generator Function Optional.
- Frequency Meter 7-bit.
- Display Size (in) 10.1in.
- Touchscreen Yes.
- Warranty 3 years.
- Certifications CE/cETLus/UKCA.
| SKU | MSO3034X |
|---|---|
| Brand | UNI-T |
