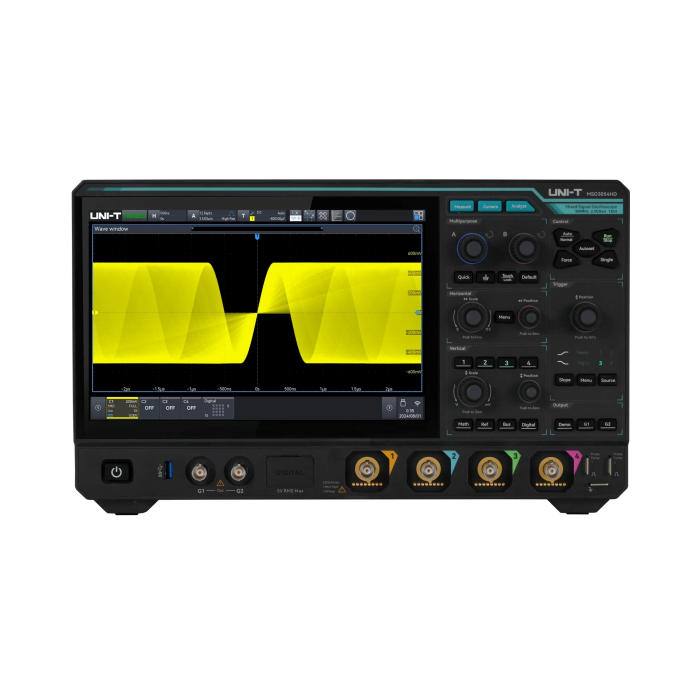

MSO3000HD Series, Digital Oscilloscopes:

• Analog channel bandwidth: 500 MHz, 350 MHz, and 200 MHz
• Real-time sampling rate: 2.5 GSa/s.
• The vertical resolution is 12-bit.
• Four analog channels and sixteen digital channels.
• Memory depth is up to 500 Mpts.
• The waveform capture rate is up to 500,000 wfms/s (in sequence mode, 1,500,000 wfms/s).
• 9 instrument features include a digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency meter, protocol analyser, bode plot analyser, and power analyser.
• Uninterrupted hardware real-time waveform recording and analysis of up to 125,000 frames.
• Enhanced FFT with up to 4 million points.
• ERES (improved resolution) is supported at up to 4 bits.
• 54 different parameter measurements. Adds a histogram and a line graph display.
• Multi-window display.
• Multi-channel 7-digit hardware frequency meter.
• DVM multi-channel RMS measurement includes DC, AC RMS, and DC+AC RMS.
• Protocol triggering and decoding functions include RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, Flex Ray, Audio, MIL-STD-1553B, Manchester, SENT, and ARINC429.
• Zone trigger to capture irregular impulses and observe complex signals.
• 10.1-inch 1280x800 HD capacitive multitouch display.
• Built-in web server.
