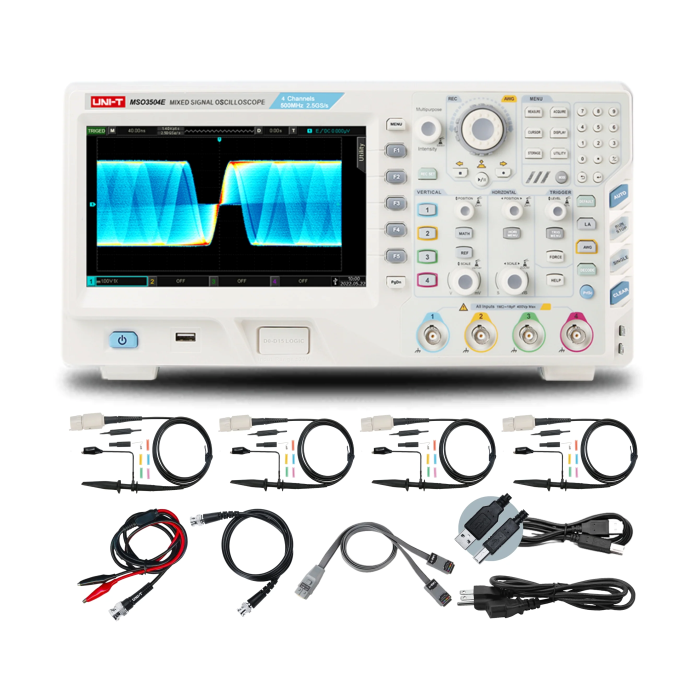

MSO/UPO3000E Series, Digital Oscilloscopes:

• Analog channel bandwidth: 350 MHz, 500 MHz
• Real-time Analog channel sample rate is 2.5 GSa/s, while digital channel real-time sample rate is 1.25 GSa/s (only MSO).
• Input impedance: 1 MΩ, 50 Ω.
• Maximum memory depth: 250 MB.
• Waveform capture rate is up to 1,000,000 wfms/s.
• Built-in 50 MHz dual-channel feature with an arbitrary waveform generator (only MSO-S).
• It allows for real-time loading of oscilloscope screen data to the AWG arbitrary wave output.
• Support the Bode Plot loop test and analysis feature.
• Hardware real-time waveform recording and analysis for up to 120,000 frames.
• Waveform operation functions include (+, -, ×, ÷, digital filtering, logic, and advanced operations).
• 1M-point improved FFT, with frequency, waterfall diagram, detection, and mark measurement capabilities, among other features.
• Automatic measurement of 36 waveform characteristics.
• Multi-Scopes 2.0 allows for multi-channel independent triggers and luminous displays.
• A multi-channel independent 7-bit hardware frequency counter.
