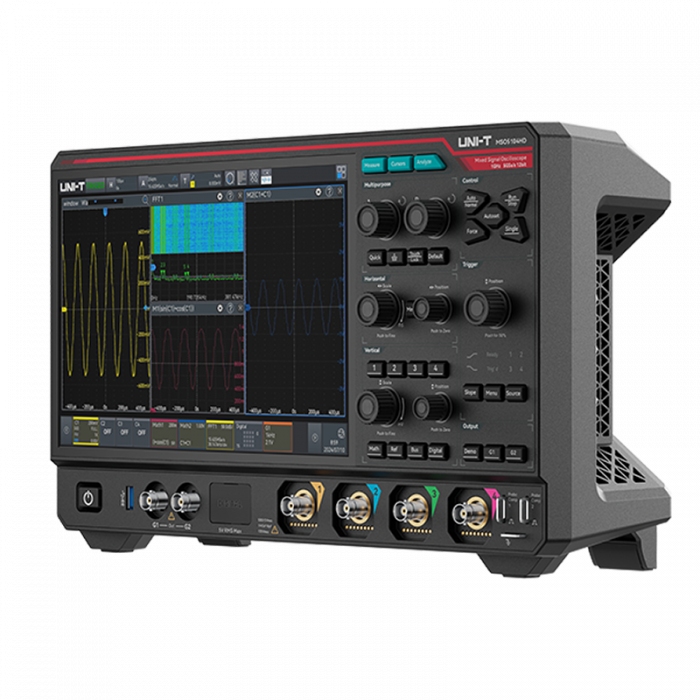

MSO5000HD Series, Digital Oscilloscopes:

• Analog channel bandwidth: 1 GHz, 500 MHz, 350 MHz
• The real-time sampling rate is 5 GSa/s.
• 12-bit vertical resolution.
• 16 digital channels and 4 analog channels.
• Memory depth is up to 500 Mpts.
• The maximum waveform capture rate is 800,000 wfms/s (or 2,000,000 wfms/s in sequence mode).
• There are nine instrument functions: digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency meter, protocol analyser, bode plot analyser, and power analyser.
• Hardware real-time waveform recording and analysis of up to 400,000 frames without interruption.
• Improved FFT by up to 4 million points.
• There are 54 different types of parameter measurements, adding a line graph display and histogram.
• Display with many windows.
• Hardware frequency meter with several channels and seven digits.
• DVM multi-channel RMS measurement includes DC, AC RMS, and DC+AC RMS.
• Functions of protocol triggering and decoding: Flex Ray, audio, MIL-STD-1553B, Manchester, SENT, ARINC429, RS232/UART, I2C, SPI, I3C, 1-wire, CAN, and CAN-FD.
• Zone trigger for detecting complex signals and recording intermittent signals.
• 10.1-inch capacitive multi-touch screen with 1280x800 HD.
• Integrated web server.
