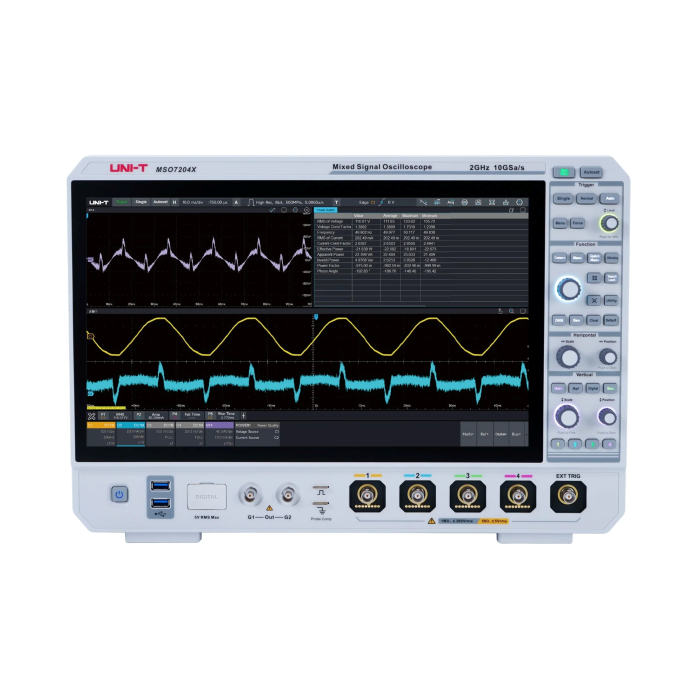

Digital Oscilloscopes, MSO7104X 1GHz 4Ch Mixed Signal Oscilloscope
MSO7000X Series, Digital Oscilloscopes:
- Analog channel bandwidth is 1G/2GHz.
- The maximum sample rate is 10 GSa/s.
- Maximum memory depth is 1 Gpt (standard setup).
- Waveform capture rates: 800,000 wfms/s (UltraAcq®) and 2,000,000 wfms/s (sequence mode).
- 11 different types of serial protocol analysis.
- A single machine with several functions: digital oscilloscope, logic analyser, spectrum analyser, function/arbitrary waveform generator, digital voltmeter, frequency counter, and protocol analyser.
- Up to 48 parameter measurements are supported, including histograms, tracking, and trend graphs.
- Advanced measurement and analysis functions include power analysis (optional), jitter analysis and eye diagrams (optional), mask and limit testing, histograms, and more.
- The operating system is Windows 10, 64-bit.
- 5.6-inch high-definition touchscreen.
- Embedded Webserver allows for convenient cross-platform access.
- Support the SCPI standard instrument programming commands.
- Enables MATLAB embedded programming and data presentation.
Specifications:
- MSO7000X Series, Digital Oscilloscopes.
- Scope Type MSO.
- Bandwidth 1GHz.
- Channels 4Ch.
- Scope Sample Rate 10GSa/s.
- Memory Depth 1Gpts.
- Refresh Rate 2,000,000wfms/s.
- Vertical Scale @1MΩ 1mV/div to 10V/div.
- Automatic Measurements 48.
- Included Bus Protocols RS232 UART I2C SPI CAN LIN RS422 RS485.
- Optional Bus Protocols CAN-FD Flex Ray SENT Audio MIL-STD-1553B ARNIC429 Manchester.
- Logic Pod Included Optional.
- Signal Generator Function Optional.
- Frequency Meter 8-bit.
- Display Size (in) 15.6in.
- Touchscreen Yes.
- Warranty 3 years.
- Certifications CE/cETLus/UKCA.
| SKU | MSO7104X |
|---|---|
| Brand | UNI-T |
