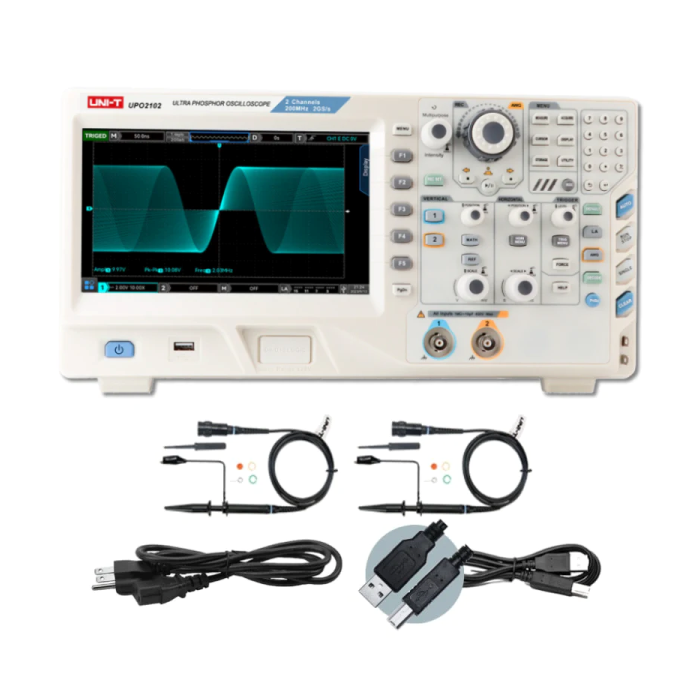

Digital Oscilloscopes, UPO2102 100MHz 2Ch MSO (w/o Logic Pod)
MSO/UPO2000 Series:
- Digital oscilloscopes.
- Bandwidth of analog channels: 200 MHz, 100 MHz
- In real time, the analog channel's sample rate is 2GSa/s.
- Each channel's memory depth is 56 Mpts.
- Waveform capture rate is up to 1,000,000 wfms/s.
- Built-in 50 MHz dual channel function and arbitrary waveform generator (only MSO-S available).
- Supports real-time loading of oscilloscope screen data to AWG arbitrary wave output.
- Support for the Bode Plot loop test and analysis function.
- Up to 120,000 frames of continuous real-time waveform recording and analysis.
Specifications:
- MSO/UPO2000 Series Digital Oscilloscopes.
- Scope Type MSO.
- Bandwidth 100MHz.
- Channels 2Ch.
- Scope Sample Rate 2.0GSa/s.
- Memory Depth 56Mpts.
- Refresh Rate 1,000,000wfms/s.
- Vertical Scale @1MΩ 500μV/div to 20V/div.
- Automatic Measurements 36.
- Included Bus Protocols None.
- Optional Bus Protocols RS232 UART I2C SPI CAN CAN-FD LIN FlexRay.
- Logic Pod Included Optional.
- Signal Generator Function Not Available.
- Frequency Meter 7-bit.
- Display Size (in) 8in.
- Touchscreen Yes.
- Warranty 3 years.
- Product Dimensions (L x W x H) 15 in x 5 in x 7 in.
- Product Weight 10 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UPO2102 |
|---|---|
| Brand | UNI-T |
