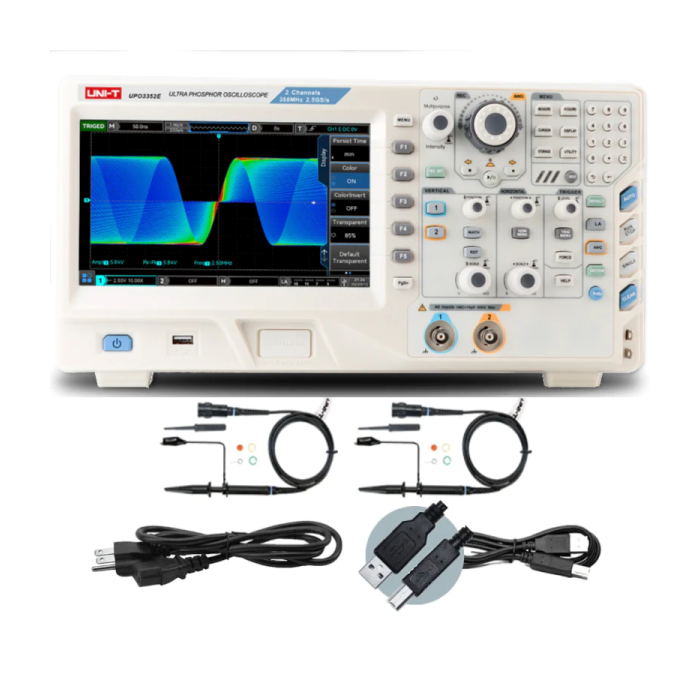

MSO/UPO3000E Series, Digital Oscilloscopes:

• Analog channel bandwidth: 350 MHz, 500 MHz
• Instantaneous analog channel sample rate: 2.5 GSa/s; digital channel sample rate in real time: 1.25 GSa/s (only MSO).
• 50Ω, 1MΩ are the input impedances.
• Maximum depth of memory: 250 mpts.
• Capture rate of waveforms up to 1,000,000 wfms/s.
• Built-in arbitrary waveform generator and dual channel operation @ 50 MHz (only MSO-S). It allows oscilloscope screen data to be loaded in real time to the AWG arbitrary wave output.
• Support the analysis and test functions of the Bode Plot loop.
• Hardware for continuous, real-time waveform analysis and recording up to 120,000 frames.
• +, -, ×, ÷, digital filtering, logic operation, and advanced operation are waveform operation functions.
• Improved FFT with 1M points, supporting waterfall diagram, detection setting, mark measurement, frequency setting, etc.
• 36 waveform properties are automatically measured.
• Multiple Scopes Fluorescent displays and multi-channel independent triggers are supported by 2.0.
• 7-bit hardware frequency counter with many independent channels.
