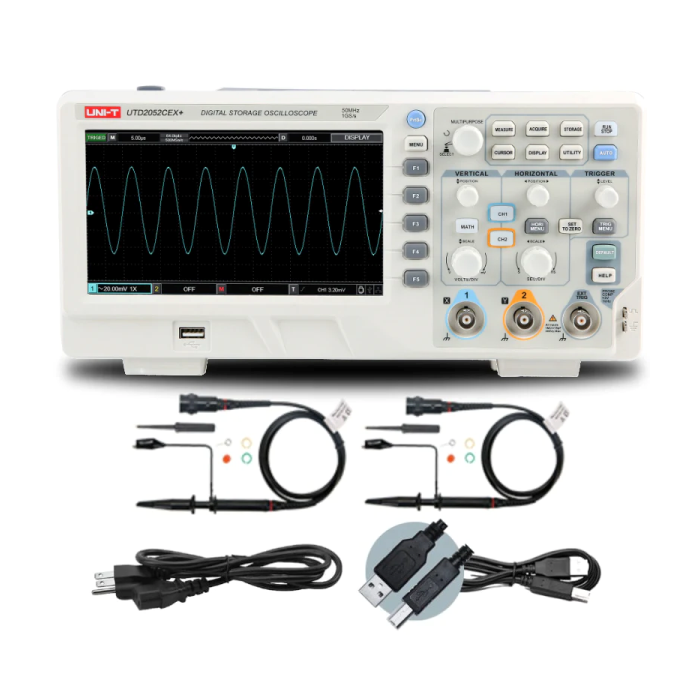

Digital Oscilloscopes, UTD2052CEX+ 50MHz 2Ch DSO
UTD2000CEX+ Series, Digital Oscilloscopes:
- 50/100/200 MHz bandwidth.
- Two channels with a low noise floor and a large vertical range of 1 mV/div to 20 V/div.
- Memory depth: 64 kpts.
- Upgrade the system software via USB drive.
- 7-inch TFT LCD.
- Supports plug-and-play USB storage devices; allows for communication with and remote control of computers via USB.
Specifications:
- UTD2000CEX+ Series, Digital Oscilloscopes.
- Scope Type DSO.
- Bandwidth 50MHz
- Channels 2Ch.
- Scope Sample Rate 1.0GSa/s.
- Memory Depth 25kpts.
- Refresh Rate 2,000wfms/s.
- Vertical Scale @1MΩ 1V/div to 20V/div.
- Automatic Measurements 34.
- Included Bus Protocols None.
- Optional Bus Protocols None.
- Logic Pod Included Not Available.
- Signal Generator Function Not Available.
- Frequency Meter 6-bit.
- Display Size (in) 7in.
- Touchscreen No.
- Warranty 3 years.
- Product Dimensions (L x W x H) 12 in x 4 in x 5 in.
- Product Weight 6 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTD2052CEX-Plus |
|---|---|
| Brand | UNI-T |
