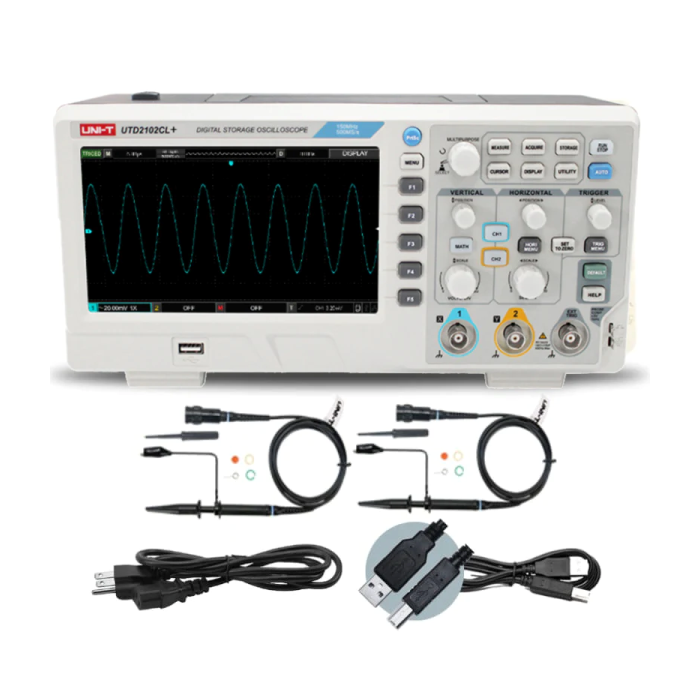

Digital Oscilloscopes, UTD2102CL+ 100MHz 2Ch DSO
UTD2000CL/CL+ Series, Digital Oscilloscopes:
- Bandwidth: 50 MHz, 70 MHz, 100 MHz, and 150 MHz
- Two channels with a low noise floor and a large vertical range of 1 mV/div to 20 V/div.
- Memory depth: 64 kpts for daily testing tasks.
- Upgrade the system software via USB drive.
- 7-inch TFT LCD.
- Supports plug-and-play USB storage devices, as well as communication and remote control of computers via USB devices.
Specifications:
- UTD2000CL/CL+ Series, Digital Oscilloscopes.
- Scope Type DSO.
- Bandwidth 100MHz
- Channels 2Ch.
- Scope Sample Rate 500MSa/s.
- Memory Depth 64kpts.
- Refresh Rate 5,000wfms/s.
- Vertical Scale @1MΩ 1V/div to 20V/div.
- Automatic Measurements 34.
- Included Bus Protocols None.
- Optional Bus Protocols None.
- Logic Pod Included Not Available.
- Signal Generator Function Not Available.
- Frequency Meter 6-bit.
- Display Size (in) 7in.
- Touchscreen No.
- Warranty 3 years.
- Product Dimensions (L x W x H) 13 in x 4 in x 6 in.
- Product Weight 6 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTD2102CL-Plus |
|---|---|
| Brand | UNI-T |
