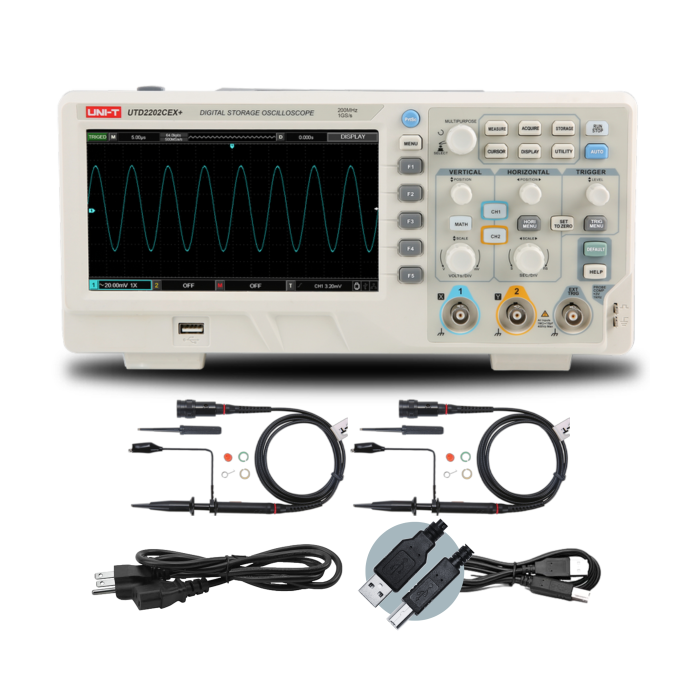

Digital Oscilloscopes, UTD2202CEX+ 200MHz 2Ch DSO
UTD2000CEX+ Series, Digital Oscilloscopes:
- 50/100/200 MHz bandwidth.
- Two channels with a low noise floor and a large vertical range of 1 mV/div to 20 V/div.
- Memory depth: 64 kpts.
- Upgrade the system software via USB drive.
- 7-inch TFT LCD.
- Supports plug-and-play USB storage devices; allows for communication with and remote control of computers via USB.
Specifications:
- UTD2000CEX+ Series, Digital Oscilloscopes.
- Bandwidth 200MHz
- Channels 2.
- Sample rate 1GS/s.
- Memory depth 64kpts.
- Waveform capture rate 5, 000wfms/s.
- Rise time ＜1.8ns.
- Vertical scale (V/div) 1mV/div-20V/div.
- Vertical resolution 8bit.
- Time base scale (s/div) 2ns/div-50s/div.
- Deviation from scope ±8div (away from screen centre).
- Input impedance 1MΩ±2% ,18±3pF.
| SKU | UTD2202CEX-Plus |
|---|---|
| Brand | UNI-T |
