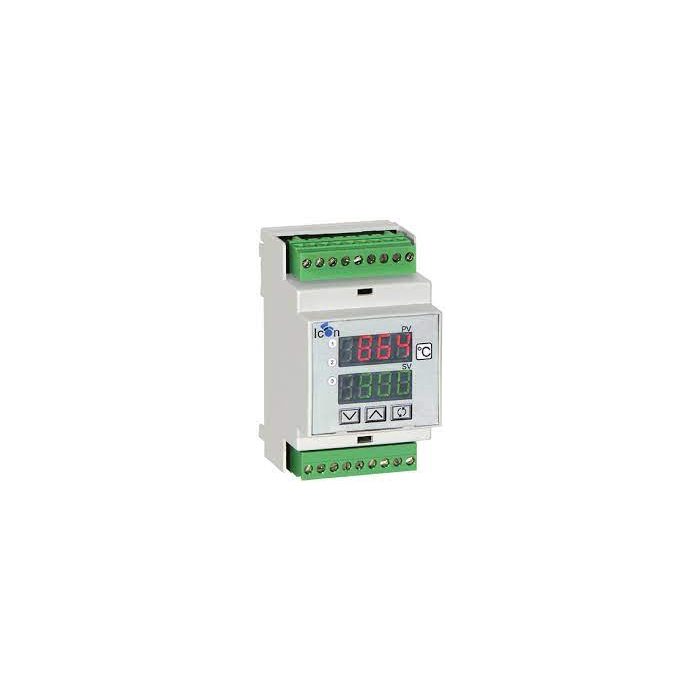

DIN 4-20mA LOOP MONITOR 240V, 1 RELAY, WITH 4-20mA
D3 series: Signal indicators and monitors, mm 4-20 mA LOOP:
- Digital timing, counting, control, and monitoring devices with modular DIN rail mounting that come in compact housing designs are available.
- provides an array of innovative features, including multiple relay output choices and a re-transmit (re-tx) function that provides an extra 4–20 mA output with specific monitoring devices.
Features:
- Connection: Terminate with a plug (to make replacement easier).
- Mounting: DIN rail (3-module wide - 54 mm).
- Display: LED dual-colour display.
- displays and tracks transducer-generated signals with outputs ranging from 4 to 20 mA as real-world values from -999 to 9999 to indicate voltage, current, temperature, pressure, etc. and displaying in real values.
Specifications:
- DESCRIPTION: Loop monitor.
- DIN rail mounting.
- Power supply: 240 VDC
- RANGE: 0-20mA/4-20mA.
- Relays: 1.
- RE-TX: Yes.
| Brand | Icon |
|---|
