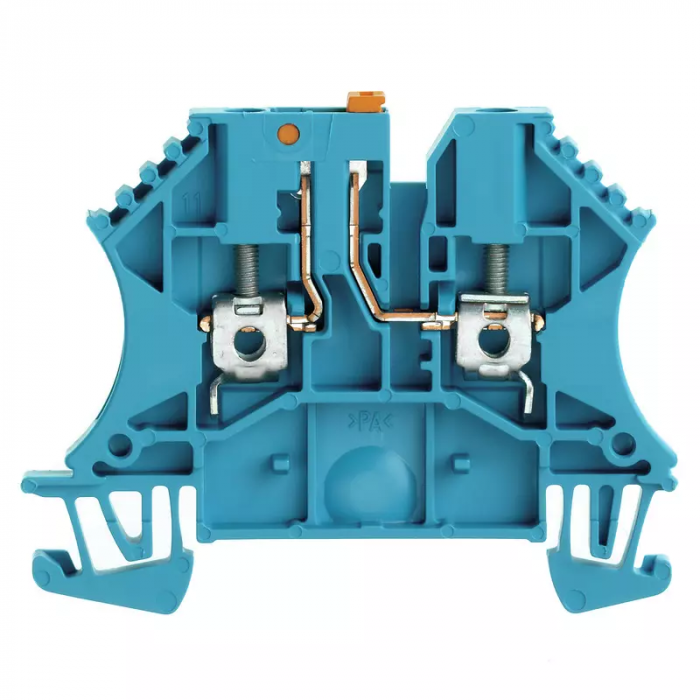

DIN Rail Terminal Blocks WTR 2.5 BL.

ZAR 47.24 ZAR 41.08
Out of stock
SKU
8731640000

DIN Rail Terminal Blocks WTR 2.5BL:

  • In some applications, it is necessary to add a test point or a disconnect element to the feed-through terminal for testing and safety reasons.
  • Test-disconnect terminals allow you to measure electric circuits without voltage.
  • The disconnecting point clearance and creepage distance are not measured in dimensional terms, but the rated impulse voltage strength must be confirmed.

Dimensions and weights:

  • Depth: 48 mm.
  • Depth including DIN rail: 49 mm.
  • Height: 60 mm.
  • Width: 5.1 mm.

Temperatures:

  • Storage temperature: -25 °C - 55 °C.
  • Continuous operating temperature., minimum: -50 °C.
  • Continuous operating temperature, maximum: 120 °C.

Material data:

  • Material: Wemid.
  • Colour: Blue.
  • UL 94 flammability rating: V-0.

Specifications rating data IECEx/ATEX:

  • Certificate No. (ATEX): DEMKO14ATEX1389U.
  • Certificate No. (IECEX): IECExUL14.0097U.
  • Maximum voltage (ATEX): 500 V.
  • Current (ATEX): 21 A.
  • Wire cross section maximum (ATEX): 2.5 mm².
  • Maximum voltage (IECEX): 500 V.
  • Current (IECEX): 21 A.
  • Wire cross section maximum (IECEX): 2.5 mm².
  • Marking EN 60079-7: Ex ec II C Gc.
  • Ex 2014/34/EU label: II 3 G D.

System specifications:

  • Version: Screw connection, Spacer, for plug-in cross-connector, One end without connector.
  • End cover plate required: Yes.
  • Number of potentials: 1.
  • Number of levels: 1.
  • Number of clamping points per level: 2.
  • Number of potentials per tier: 1.
  • Levels cross-connected internally: No.
  • PE connection: No.
  • Rail: TS 35.
  • N-function: No.
  • PE function: No.
  • PEN function: No.

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):

  • Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, maximum: 1.5 mm².
  • Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, minimum: 0.5 mm².
  • Wire connection cross section, finely stranded, two clampable wires, minimum: 0.5 mm².
  • Wire cross-section, finely stranded, two clampable wires, maximum: 1.5 mm².

Additional technical data:

  • Explosion-tested version: No.
  • Open sides: Right.
  • Type of mounting: Snap-on.

CSA rating data:

  • Certificate No. (CSA): 154685-1152890.
  • Current size C (CSA): 10 A.
  • Voltage size C (CSA): 300 V.
  • Wire cross section maximum (CSA): 12 AWG.
  • Wire cross section minimum. (CSA): 26 AWG.

Conductors for clamping (rated connection):

  • Blade size: 0.6 x 3.5 mm.
  • Clamping range, maximum: 4 mm².
  • Clamping range, minimum: 0.05 mm².
  • Clamping screw: M 2.5.
  • Connection cross-section, stranded, maximum: 4 mm².
  • Connection cross-section, stranded, minimum: 1.5 mm².
  • Connection direction: on side.
  • Gauge to IEC 60947-1: A3.
  • Number of connections: 2.
  • Stripping length: 10 mm.
  • Tightening torque, maximum: 0.8 Nm.
  • Tightening torque, minimum: 0.4 Nm.
  • Torque level with DMS electric screwdriver: 1.
  • Type of connection: Screw connection.
  • Wire connection cross section AWG, maximum: AWG 12.
  • Wire connection cross section AWG, Minimum: AWG 30.
  • Wire connection cross section, finely stranded, maximum: 4 mm².
  • Wire connection cross section, finely stranded, minimum: 0.5 mm².
  • Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, maximum: 2.5 mm².
  • Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, minimum:  0.5 mm².
  • Wire connection cross-section, solid core, maximum: 4 mm².
  • Wire connection cross-section, solid core, minimum: 0.5 mm².

Disconnect terminals:

  • Without cross-disconnect.
  • No integral test socket.
  • Pivoting slitting.

General:

  • TS 35 rail.
  • Standards: IEC 60947-7-1.
  • Wire connection cross section AWG, maximum: AWG 12.
  • Wire connection cross section AWG, minimum: AWG 30.

Rating data:

  • Rated cross-section: 2.5 mm².
  • Rated voltage: 500 V.
  • Rated current: 24 A.
  • Current at maximum wires: 24 A.
  • Standards: IEC 60947-7-1.
  • Volume resistance according to IEC 60947-7-x: 1.33 mΩ.
  • Rated impulse withstands voltage: 6 kV.
  • Power loss in accordance with IEC 60947-7-x: 0.77 W.
  • Pollution severity: 3.

UL rating data:

  • Certificate No. (UR): E60693.
  • Conductor size Factory wiring maximum (UR): 12 AWG.
  • Conductor size Factory wiring minimum (UR): 30 AWG.
  • Conductor size Field wiring maximum (UR): 12 AWG.
  • Conductor size Field wiring minimum (UR): 30 AWG.
  • Current size C (UR): 20 A.
  • Voltage size C (UR): 600 V.
