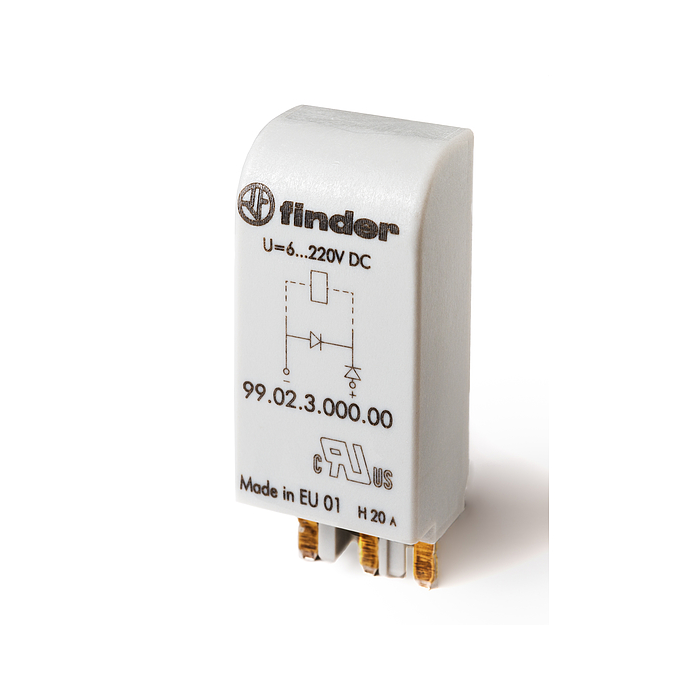

DIODE MODULE 6-220VDC
Socket modules in Series 99:
- Plug-in modules are useful add-ons for relays that provide timing, diode protection, RC circuits,
- LED indication (for observing relay status from a distance), bypass, and all socket-mounted plug-in relay features.
- The modules improve the functioning of the relay by only plugging them into designated sockets.
Depending on the chosen module, they can offer:
- Coil back emf suppression during switch-off LED indication to indicate whether the coil is activated.
- placed across the coil terminals to provide protection from reverse polarization.
- Distressing leakage currents in the coil circuit are bypassed.
Diode module:
- Recovery diode modules are used for DC applications, reverse voltage peaks of the coil are short circuited by the recovery diode, release time is increased by a factor of 3.
- VOLTAGE: 6 - 220 VDC
- DESCRIPTION: Diode module (standard polarity a1/+)
| Brand | Finder |
|---|
