Digiware DIRIS:

• The best option for metering usage is the multi-circuit power monitoring device, or DIRIS Digiware.
• Measuring and keeping an eye on the electrical energy quality for use in commercial and industrial settings.

Qualities:

• Precision according to IEC 61557-12 standard (Class 0.5).
• Implementation in 25% less time than current metering technologies.
• Installing current sensors and measuring modules where the load is closest to the source.
• Has independent current inputs that allow it to monitor several circuits with a single current measuring module.
• Small and adaptable design: ideal for both new and old installations, even panels with limited room.

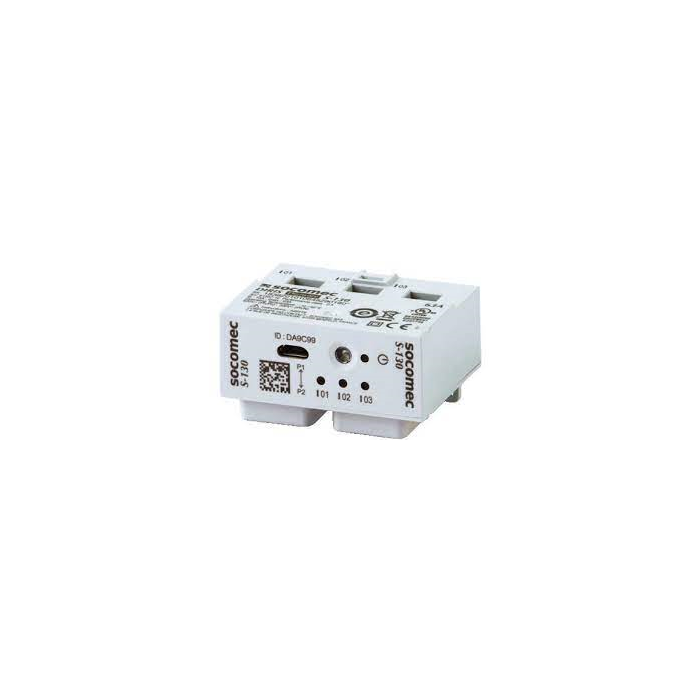

DIRIS Digiware S - Modules for measuring current:

• With three integrated current sensors, DIRIS Digiware S is a power metering and monitoring solution that can measure up to 63 A in one three-phase or three single-phase circuits.
• Measurement units: ± kWh, ± kvarh, kVAh.
• Able to be installed either downstream or upstream of the safety mechanism.
• Virtual Monitor's advanced monitoring (position, travel, etc. without the need for an auxiliary).
• Matching protective device pitches up to 63 A and resolving space-related problems.
