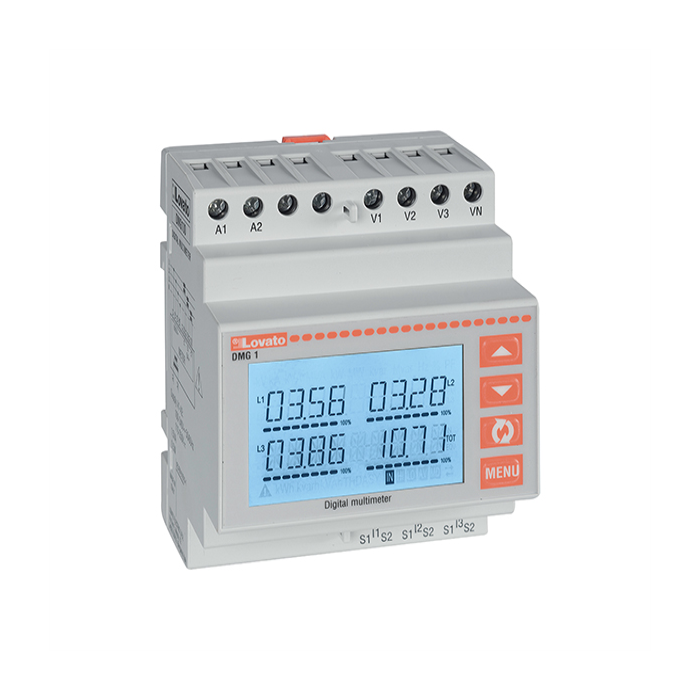

DMG100 MODULAR POWER ANALYSER
DMG100 series digital multi-meters / Power analysers:
- DMG digital multi-meters and power analysers are equipped with a digital LCD display providing extremely clear, intuitive, and flexible viewing of all electrical parameters in an installation.
- DMG digital multi-meters in a modular housing (4 modules wide).
- DMG100 series LCD multi-meters economical with icon display.
- Input current: CT - 1A or 5A.
- Voltage measurement: 50 - 720 VAC L-L.
- Harmonic analysis of V and I up to the 15th order.
- Auxiliary power supply: 100 - 240 VAC / 120 - 250 VDC.
Specifications:
- SERIES: DMG100
- DESCRIPTION: Modular power analyser
- VOLTAGE/CURRENT: ±0.5% (True RMS measurements)
- Power: ±1% f.s.
- Frequency: ±0.05%
- ACTIVE ENERGY: Class 1
- MOUNTING: DIN rail mounting (aligns with standard MCB 45mm cutout)
- MODULE WIDTH X 18 (MM): 4
| Brand | Lovato electric |
|---|
