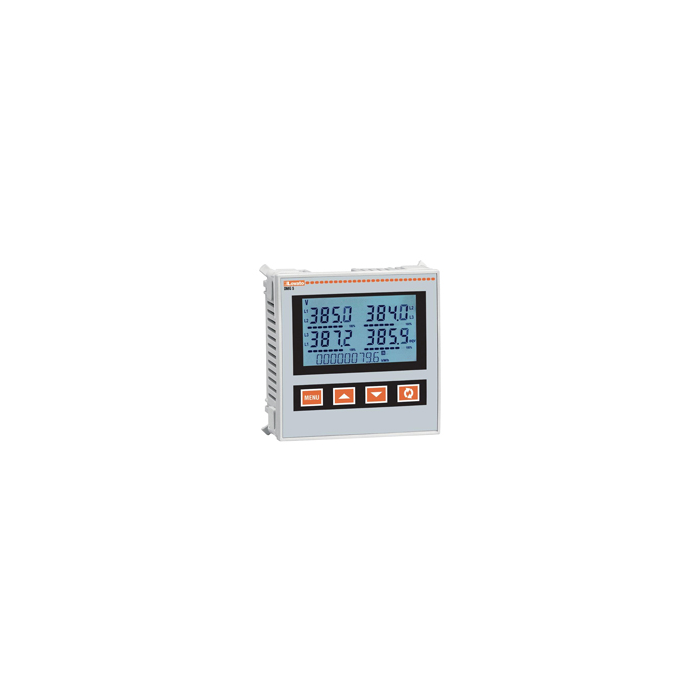

DMG510 SERIES: 96mm P/MOUNT MULTI-METER + RS485
DMG500 series - Digital multimeters / Power analyser:
- Backlit LCD icon display.
- Auxiliary power supply: 100...240 VAC.
- Voltage measurement range: 480 VAC (50/60 Hz).
- Flush mounting digital metering instruments (96 x 96 mm).
Specifications:
- SERIES: DMG510 series
- DESCRIPTION: Econo digital panel mount power analyser (with RS485 port)
- AUXILIARY POWER SUPPLY: 100 - 240 VAC
- INPUT CURRENT: CT - 1A or 5A.
- VOLTAGE MEASUREMENT: 480 VAC (50/60 Hz)
- VOLTAGE/CURRENT: ±0.5%
- POWER: ±1% f.s.
- ACTIVE ENERGY: Class 1 (IEC/EN 62053-21)
- REACTIVE ENERGY: Class 2 (IEC/EN 62053-23)
- MOUNTING: Panel mount (96 x 96 mm)
- COMMUNICATION PORT: RS485
| SKU | DMG510 |
|---|---|
| Brand | Lovato electric |
