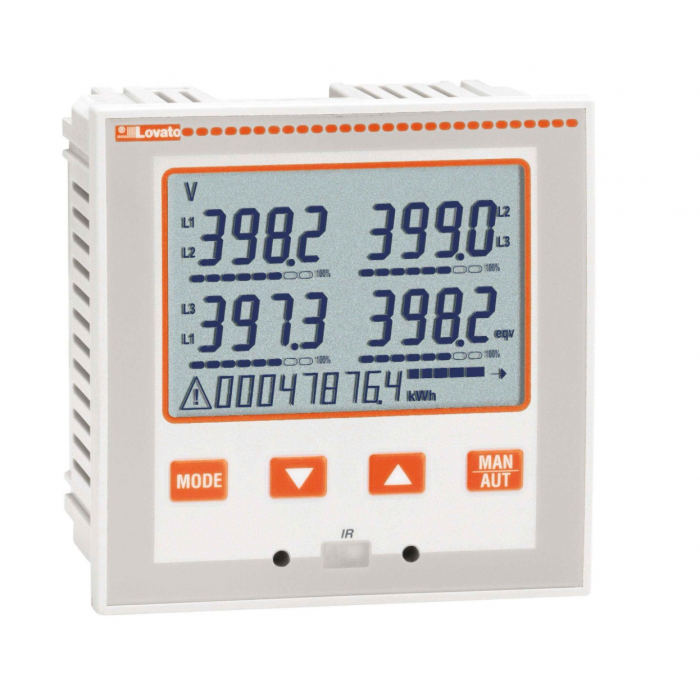

DMG600 SERIES: 96mm PANEL MOUNT MULTI-METER
DMG600 series digital multi-meters / Power analysers:
- DMG600 series (economical).
- Backlit LCD icon display.
- Input current: CT - 1A or 5A.
- Voltage measurement: 50 - 720 VAC L-L.
- Auxiliary power supply: 90 - 484 VAC / 94 - 300 VDC.
- True RMS measurements of voltage and current values.
- Harmonic analysis of voltage and current up to the 15° order.
Specifications:
- SERIES: DMG600
- DESCRIPTION: Digital panel mount power analyser
- AUXILIARY POWER SUPPLY: 90 - 484 VAC / 94 - 300 VDC
- INPUT CURRENT: CT - 1A or 5A.
- VOLTAGE MEASUREMENT: 50 - 720 VAC L-L
- VOLTAGE/CURRENT: ±0.5%
- POWER: ±1% f.s.
- ACTIVE ENERGY: Class 1 (IEC/EN 62053-21)
- REACTIVE ENERGY: Class 2 (IEC/EN 62053-23)
- EXPANSION SLOTS: 1
- MOUNTING: Panel mount (96 x 96 mm)
| SKU | DMG600 |
|---|---|
| Brand | Lovato electric |
