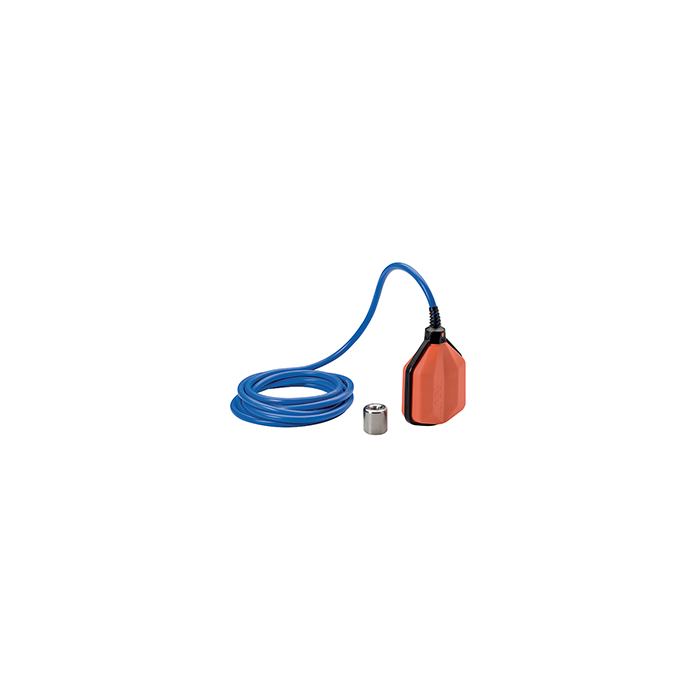

DRINKING WATER FLOAT SWITCH 15 METER
Float switches for drinking water, LVFS series:
- Applications involving drinking water and food, such as aqueducts, fountains, aquariums, beverages, fish hatcheries, swimming pools, etc., are appropriate for these float switches.
- Realized with an untreated stainless-steel sphere, a non-toxic polypropylene outer shell, and an AD8 cable with an ACS health certification and a PVC outer sheath appropriate for use with food products and drinkable water immersion.
Features in general:
- ACS + AD8 approved PVC cable.
- AISI 316 stainless steel counterweight is included.
- The distance between the counterbalance and the float can be changed to change the MIN and MAX levels.
- During regulator wiring, the filling and/or emptying function can be selected via the changeover contact.
LVFSA SERIES:
- DESCRIPTION: Float switch (PVC cable for drinking water applications)
- INDEX PROTECTION IP: IP68
- INSULATION: Class II
- STANDARD OF COMFORMITY: IEC/EN 60730-1/-2-15, TUV certification
- ACTIVATION ANGLE: -30° ... +30°
- EXTERNAL COUNTERWEIGHT: 130g external counterweight (included)
- MODULE WIDTH: 15 meters
| Brand | Lovato electric |
|---|
