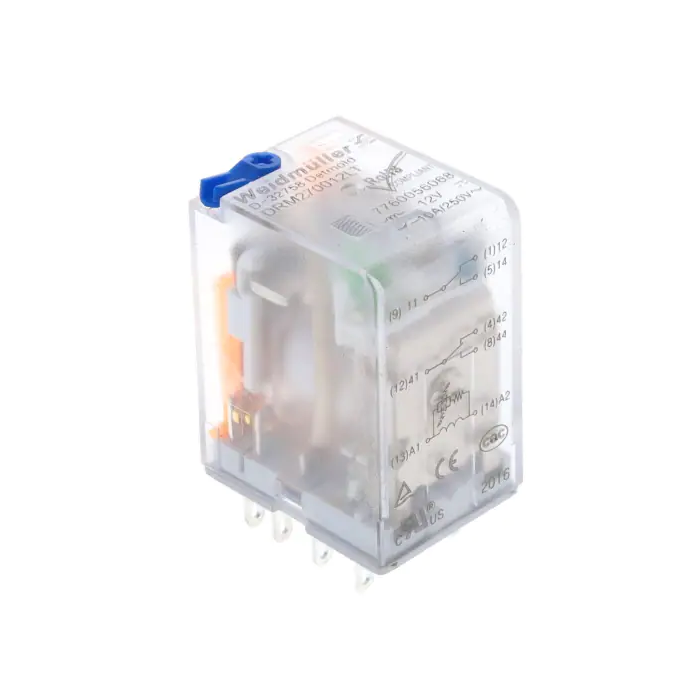

Specifications dimensions and weights:

• Depth: 35.7 mm.
• Depth (inches): 1.406 inch.
• Height: 27.4 mm.
• Height (inches): 1.079 inch.
• Width: 21 mm.
• Width (inches): 0.827 inch.
• Net weight: 35.3 g.

Temperatures:

• Storage temperature: -40 °C - 70 °C.
• Operating temperature: -40 °C - 60 °C.
• Humidity: 35 - 85 % rel. humidity, no condensation.

Rated data UL:

• Certificate No. (cURus): E312083.

Control side:

• Rated control voltage: 12 V DC.
• Rated current DC: 75 mA.
• Power rating: 0.9 W.
• Coil resistance: 160 Ω ± 10 %.
• Coil tolerance: 10 %.
• Status indicator: Green LED.

Load side:

• Rated switching voltage: 250 V AC.
• Continuous current: 10 A.
• Max. switching frequency at rated load: 0.1 Hz.
• Max. switching voltage, AC: 250 V.
• Min. switching power: 10 mA @ 12 V, 100 mA @ 5 V.
• Inrush current: 20 A / 50 ms.
• AC switching capacity (resistive), max.: 2500 VA.
• DC switching capacity (resistive), max.: 240 W @ 24 V.
• Switch-on delay: < 20 ms.
• Switch-off delay: < 20 ms.
• Contact type: 2 CO contact (AgNi flash gold-plated).
• Mechanical service life: 20 x 106 switching cycles.

General data:

• Test button available: Yes.
• Version of test button: Lockable test button, Momentary test button.
• Mechanical switch position indicator: Yes.
• Colour: Transparent.
• UL94 flammability rating component:
• Component: Relay cover.
• UL94 flammability rating: V-2.
• Component: Relay baseplate.
• UL94 flammability rating: V-0.
• Component: Relay status indicator.
• UL94 flammability rating: HB.
• Component: Relay test button.
• UL94 flammability rating: HB

Insulation coordination:

• Rated voltage: 250 V.
• Pollution severity: 2.
• Surge voltage category: III.
• Clearance and creepage distances for control side - load side: ≥ 5.5 mm.
• Dielectric strength for control side - load side: 1.8 kVeff /1 min.
• Dielectric strength of neighbouring contacts: 1 kVeff / 1 min.
• Dielectric strength of open contact: 1 kVeff / 1 min.
• Impulse withstand voltage: 6 kV (1.2/50 µs).
• Protection degree: IP20.

Further details of approvals / standards:

• Certificate No.(cURus): E312083.

Connection data:

• Wire connection method: Plug-in connection.
