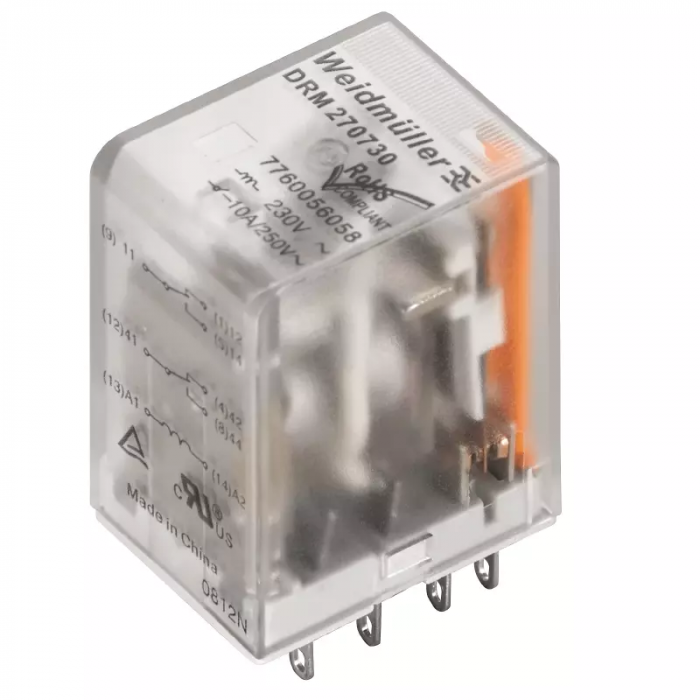

SPECIFICATIONS DIMENSIONS AND WEIGHTS:

• DEPTH: 35.7 MM.
• DEPTH (INCHES): 1.406 INCH.
• HEIGHT: 27.4 MM.
• HEIGHT (INCHES): 1.079 INCH.
• WIDTH: 21 MM.
• WIDTH (INCHES): 0.827 INCH.
• NET WEIGHT: 34.95 G.

TEMPERATURES:

• STORAGE TEMPERATURE: -40 °C...70 °C.
• OPERATING TEMPERATURE: -40 °C...60 °C.
• HUMIDITY: 35...85 % REL. HUMIDITY, NO CONDENSATION.

RATED DATA UL:

• CERTIFICATE NO. (CURUS): E312083.

CONTROL SIDE:

• RATED CONTROL VOLTAGE: 24 V DC.
• RATED CURRENT DC: 37.8 MA.
• POWER RATING: 0.9 W.
• COIL RESISTANCE: 650 Ω ± 10 %.
• COIL TOLERANCE: 10 %.
• STATUS INDICATOR: NO.

LOAD SIDE:

• RATED SWITCHING VOLTAGE: 250 V AC.
• CONTINUOUS CURRENT: 10 A.
• MAX. SWITCHING FREQUENCY AT RATED LOAD: 0.1 HZ.
• MAX. SWITCHING VOLTAGE, AC: 250 V.
• MIN. SWITCHING POWER: 10 MA @ 12 V, 100 MA @ 5 V.
• INRUSH CURRENT: 20 A / 50 MS.
• AC SWITCHING CAPACITY (RESISTIVE), MAX.: 2500 VA.
• DC SWITCHING CAPACITY (RESISTIVE), MAX.: 240 W @ 24 V.
• SWITCH-ON DELAY: < 20 MS.
• SWITCH-OFF DELAY: < 20 MS.
• CONTACT TYPE: 2 CO CONTACT (AGNI FLASH GOLD-PLATED).
• MECHANICAL SERVICE LIFE: 20 X 106 SWITCHING CYCLES.

GENERAL DATA:

• TEST BUTTON AVAILABLE: NO.
• MECHANICAL SWITCH POSITION INDICATOR: YES.
• COLOUR: TRANSPARENT.

UL94 FLAMMABILITY RATING COMPONENT:

• COMPONENT: RELAY COVER.
• UL94 FLAMMABILITY RATING: V-2.
• COMPONENT: RELAY BASEPLATE.
• UL94 FLAMMABILITY RATING: V-0.
• COMPONENT: RELAY STATUS INDICATOR.
• UL94 FLAMMABILITY RATING: HB.

INSULATION COORDINATION:

• RATED VOLTAGE: 250 V.
• POLLUTION SEVERITY: 2.
• SURGE VOLTAGE CATEGORY: III.
• CLEARANCE AND CREEPAGE DISTANCES FOR CONTROL SIDE - LOAD SIDE: ≥ 5.5 MM.
• DIELECTRIC STRENGTH FOR CONTROL SIDE - LOAD SIDE: 1.8 KVEFF /1 MIN.
• DIELECTRIC STRENGTH OF NEIGHBOURING CONTACTS: 1 KVEFF / 1 MIN.
• DIELECTRIC STRENGTH OF OPEN CONTACT: 1 KVEFF / 1 MIN.
• IMPULSE WITHSTAND VOLTAGE: 6 KV (1.2/50 µS).
• PROTECTION DEGREE: IP20.

FURTHER DETAILS OF APPROVALS / STANDARDS:

• CERTIFICATE NO.(CURUS): E312083.

CONNECTION DATA:

• WIRE CONNECTION METHOD: PLUG-IN CONNECTION.
