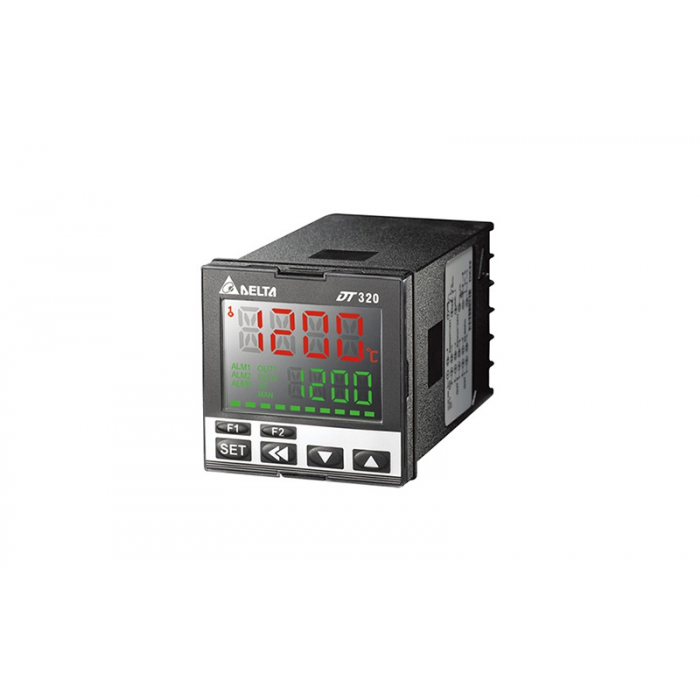

DT3 TEMPERATURE CONTROLLER RELAY OUTPUT (48X48)
The advanced high-speed intelligent temperature controller in the DT3 series:
- With improved hardware and increased specs, the new DT3 series temperature controller offers user-defined function keys, smart operation, quick response, and simple expendability.
Different internal sensor input modes:
- Thermocouple: TXK Platinum, K, J, T, E, N, R, S, B, L, U RTD: Cu50, Ni120, RTD: Pt100, JPt100.
- Multiple Control Modes: ON/OFF PID Process Control, Manual, FUZZY, Auto Tuning, and Self Tuning.
Multiple Output Modes:
- DC current, linear voltage, voltage pulse, and relay.
- Transmission: RS-485 transmission MODBUS RTU / ASCII protocol.
- Large, three-color LCD display.
- IP protection: CE, UL approved, with an IP66 protection level.
- Output: Heating and cooling dual output control function.
- Alarm: Disconnection of the heater.
- 100 ms sampling rate; 100–240 VAC supply voltage.
SERIES DT3:
- SUPPLY VOLTAGE: 100 - 240 VAC
- FREQUENCY: 50/60 Hz
- PANEL SIZE (MM) - W X H: 48 x 48
- THERMOCOUPLE: Type (K-J-T-E-N-R-S-B-L-U-TXK) - Platinum RTD: Pt100, JPt100
- DESCRIPTION: Advanced temperature controller
- LCD DISPLAY: Process Value (PV) Red colour - Set point (SV) Green colour.
- OUPUT 1: Relay
| Brand | Delta |
|---|
