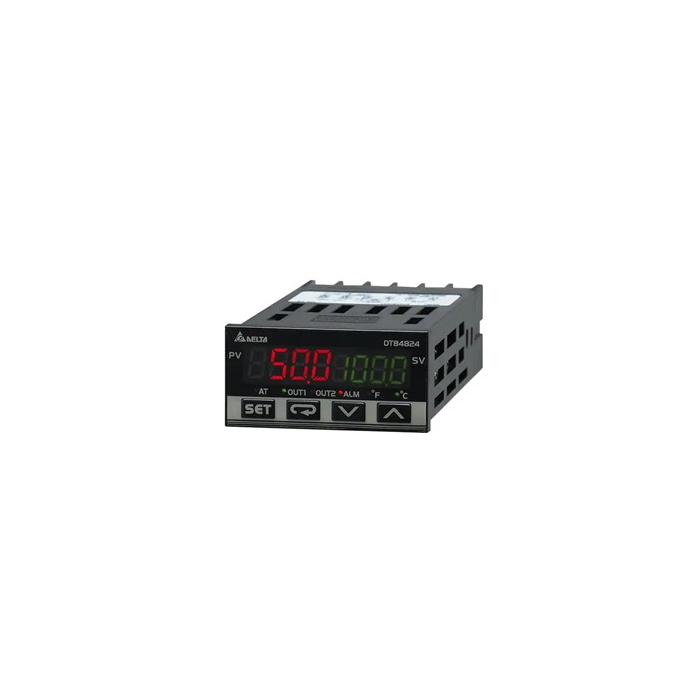

DTB TEMPERATURE CONTROLLER RELAY-RELAY OUTPUT (48 x 24)
"Advanced" temperature controller from the DTB series:
- In addition to having dual output control and a linear voltage signal output, the DTB series of temperature controllers is more advanced than the DTA series in that it can operate both heating and cooling controls in a temperature control system concurrently and quickly attain the desired temperature.
Features:
- Three sets of outputs for alarms.
- Two sets of auto-tuned outputs Two sets of PID parameters.
- Rate of sampling: Thermocouple or platinum RTD 0.4 seconds, analogue input: 0.15 seconds.
- Inbuilt dual loop output control (RS485 digital communication, 2.400 - 38.400bps) for heating and cooling.
SERIES DTB:
- SUPPLY VOLTAGE: 100 - 240 VAC.
- FREQUENCY: 50/60 Hz.
- INDEX PROTECTION IP: IP65.
- PANEL SIZE (MM) - W X H: 48 x 24.
- THERMOCOUPLE: Type (K-J-T-E-N-R-S-B-L-U-TXK) - Platinum RTD: Pt100, JPt100.
- DESCRIPTION: Advanced temperature controller.
- LCD DISPLAY: Process Value (PV) Red colour - Set point (SV) Green colour.
- OUTPUT 1: Relay.
- OUPUT 2: Relay.
| Brand | Delta |
|---|
