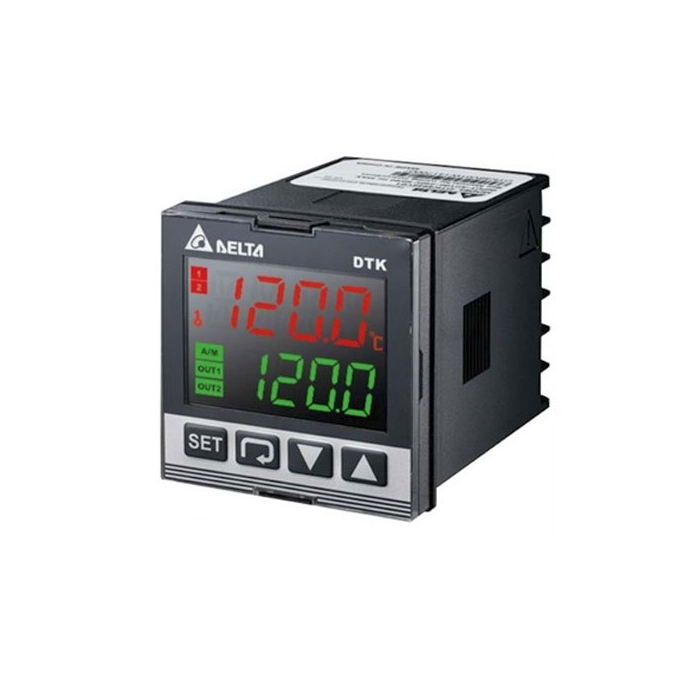

DTK TEMPERATURE CONTROLLER RELAY OUTPUT (48X48)
"Low cost" temperature controller from the DTK series:
- A new temperature controller with an excellent cost-performance ratio is the DTK series.
- It enhances temperature control system performance and significantly reduces development time and expenses.
- Operators can effortlessly keep an eye on the temperature in any setting or situation thanks to the compact design of this 60 mm long high-resolution LCD panel.
Features:
- Reduced in length to 60 mm.
- High-definition LCD panel.
- High speed sampling time of 100 ms, manual control modes, PID, ON/OFF.
- Nine customizable alarm modes and one alarm output.
DTK Series:
- SUPPLY VOLTAGE: 100 - 240 VAC.
- FREQUENCY: 50/60 Hz.
- INDEX PROTECTION IP: IP65.
- PANEL SIZE (MM) - W X H: 48 x 48.
- THERMOCOUPLE: Type (K-J-T-E-N-R-S-B-L-U-TXK) - Platinum RTD: Pt100, JPt100.
- DESCRIPTION: Low-cost temperature controller.
- LCD DISPLAY: Process Value (PV) Red colour - Set point (SV) Green colour.
- OUPUT 2: Relay.
