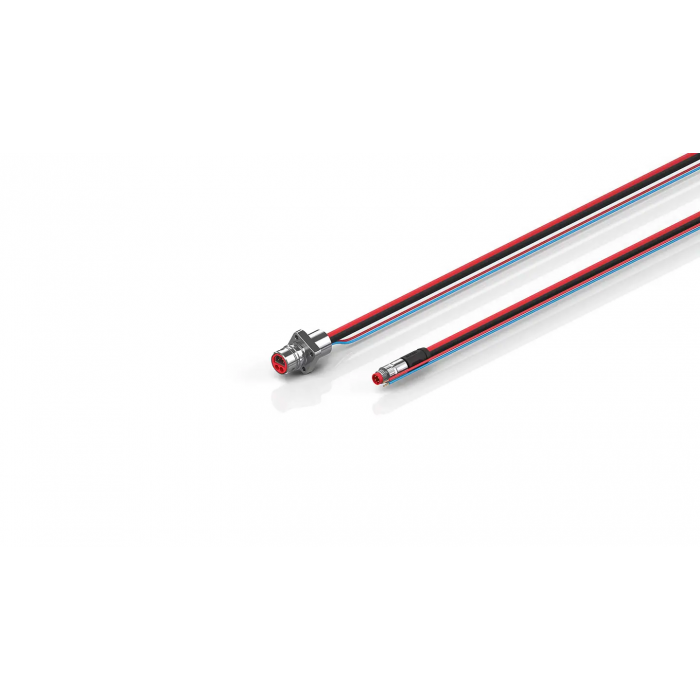

ECP cable 0.50 m ZK7102-AB00-0005

Head A Installation size: B12 Connector type: socket Contact type: male+male Number of positions (face): pins 2+4 Coding: P-coded Wire termination: crimp connection Installation size: black Head B Shielding: B12 Installation size: plug Connector type: female+ female Contact type: pins 2+4 Number of positions (face): P-coded Coding: crimp connection Body color: black Head C Installation size: open end Number of positions (face): 2-wire Meterware Cross-section (Ethernet): 1 x 4 x 0.34 mm² (AWG 22) Cross-section (power): 2 x 0.75 mm² (approx. AWG18) Use: drag-chain suitable Material jacket: PUR (polyurethane) Outer cable diameter: 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") Jacket color: black (similar to RAL 9005) with red stripe (similar to RAL 3020) Dimensions: A1: 36.00 mm A2: 20.00 mm A3: 15.70 mm A4: 13.20 mm A5: 17.80 mm B1: 41.00 mm
