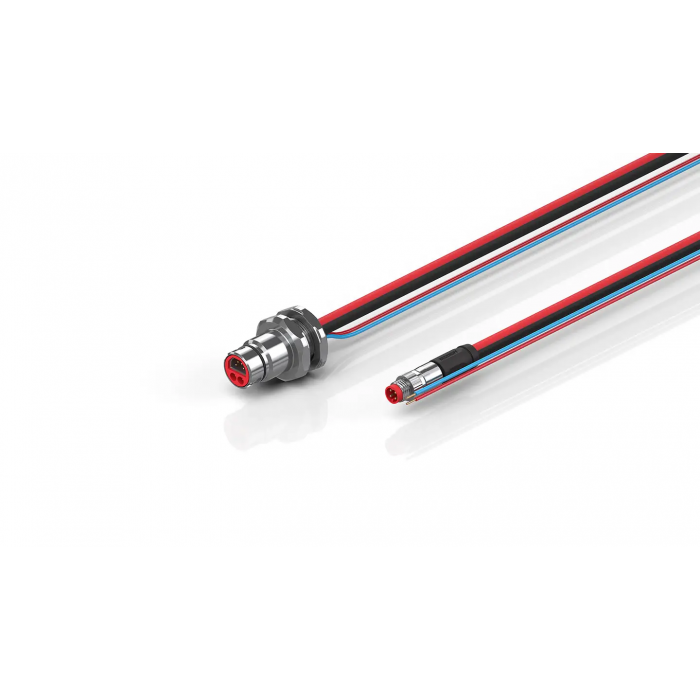

ECP cable 1.60 m ZK7102-BJ00-0016

Head A Installation size: B12 Connector type: flange front assembly Contact type: male+male Number of positions (face): pins 2+4 Coding: P-coded Wire termination: crimp connection Head B Shielding: yes Installation size: M8 Connector type: plug Contact type: male Number of positions (face): 4-pin Coding: P-coded Body color: black Head C Installation size: open end Number of positions (face): 2-wire Meterware Cross-section (Ethernet): 1 x 4 x 0.34 mm² (AWG 22) Cross-section (power): 2 x 0.75 mm² (approx. AWG18) Use: drag-chain suitable Material jacket: PUR (polyurethane) Outer cable diameter: 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") Jacket color: black (similar to RAL 9005) with red stripe (similar to RAL 3020) Dimensions A1: 36.00 mm A2: WAF24 A3: 16.50 mm A4: 19.50 mm A5: 12.50 mm A6: M18 B1: 41.00 mm
