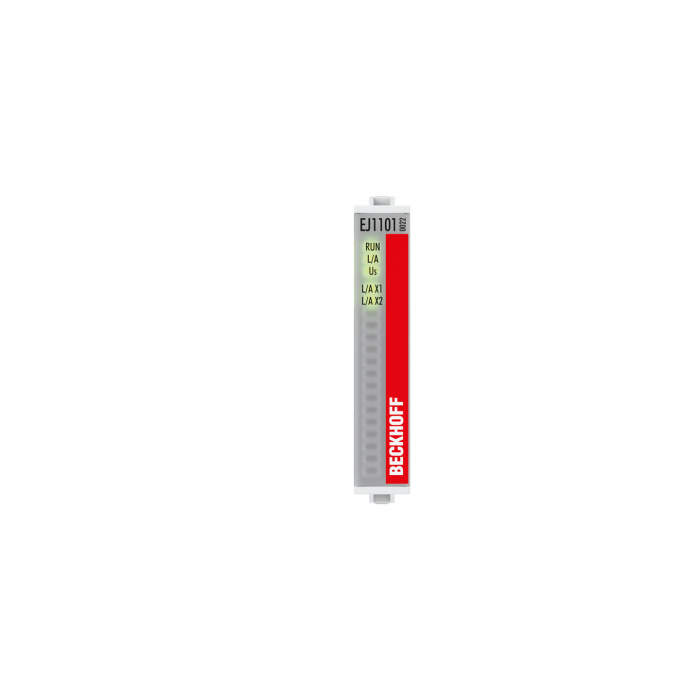

EJ1101-0022 EtherCAT Coupler

Task within EtherCAT system: coupling of EtherCAT plug-in modules (EJxxxx) to 100BASE-TX EtherCAT networks Distance between stations: max. 100 m (100BASE-TX) Data transfer medium: Industrial Ethernet/EtherCAT cable (min. Cat.5), shielded ID switch: external (optional, not included) Diagnostics: over-/undervoltage via EtherCAT CoE Protocol: EtherCAT Delay: typ. 1 µs Data transfer rates: 100 Mbit/s Bus interface: plug connector on the signal distribution board, e.g. 2 x RJ45 Power supply: 24 V DC (-15 %/+20 %) Current consumption E-bus: typ. 310 mA Current supply E-bus: external via EJ94xx Electrical isolation: 500 V (power contact/supply voltage/Ethernet) Weight: approx. 30 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos.: IP20/see documentation Approvals/markings: CE, UL
