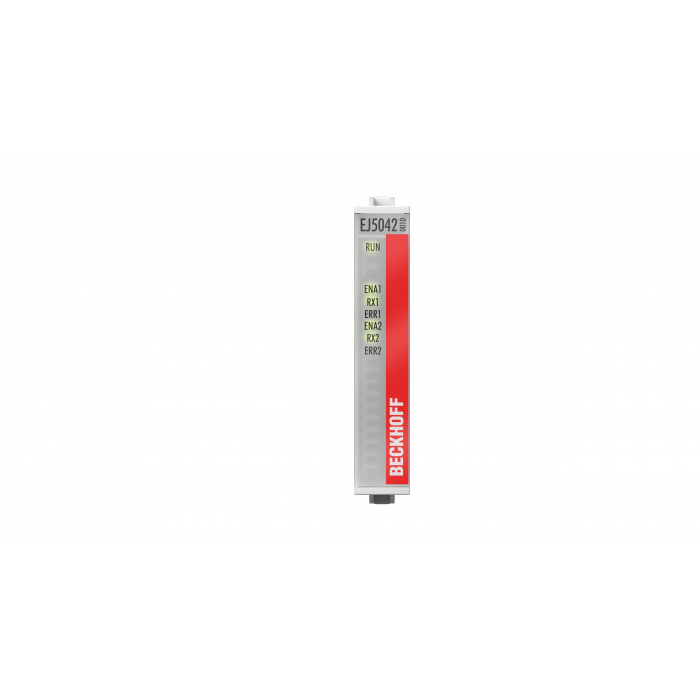

EJ5042-0010 EtherCAT plug-in module

Technology: BiSS-C interface, unidirectional Encoder connection: binary input: D+, D-, binary output: C+, C- Encoder operating voltage: external e.g. by EJ9505 Supply voltage electronics: via UP contacts Current consumption E-bus: typ. 180 mA Current consumption from UP: typ. 30 mA + load Resolution: max. 64 bit position, 2 bit status, 8 bit CRC Data transfer rates: variable up to 10 MHz, 10 MHz default Distributed clocks: yes Electrical isolation: 500 V (E-bus/field potential) Special features: adjustable baud rate, data length, two status bits (error and warning) can be evaluated separately Weight: approx. 30 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP20/see documentation Approvals/markings: CE
