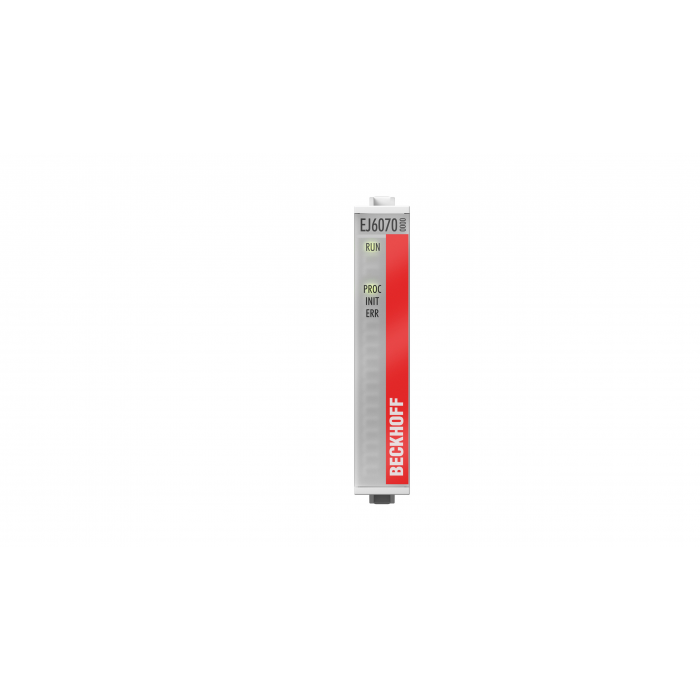

EJ6070 EtherCAT plug-in module
TwinCAT 3.1 offers an option to manage TwinCAT software licenses via the EtherCAT plug-in module EJ6070. The EJ6070 embodies the hardware license key in the modular EtherCAT I/O system. Data transfer takes place via EtherCAT.
Technology: EtherCAT license key module
Memory: 1 Mbyte
Current consumption E-bus: typ. 130 mA
Special features: transmission of license information via EtherCAT
Electrical isolation: 500 V (E-bus/field potential)
Weight: approx. 30 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/see documentation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Approvals/markings: CE
| SKU | EJ6070 |
|---|
