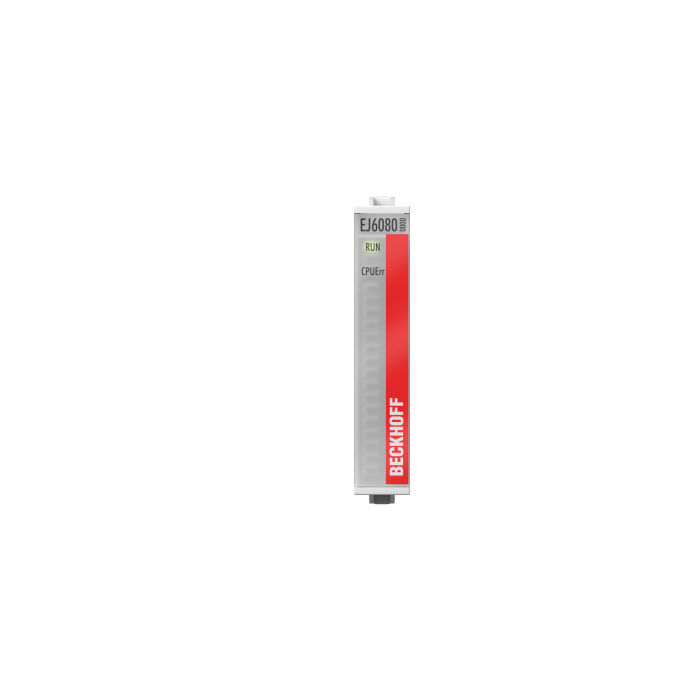

EJ6080 EtherCAT plug-in module
The EJ6080 EtherCAT plug-in module has 128 kB of non-volatile memory (NOVRAM). The module can be used to store and read out parameters and recipes. Part of the memory can also be used for the cyclic storage of machine data such as operating hour meters or production numbers.
Technology: EtherCAT storage module
Memory: 128 kbyte NOVRAM
Max. usable memory, cyclic access: 1280 byte
Max. usable memory, acyclic access: up to 128 kbyte in max. 8190 byte sized objects, depending on variable structure
Number of write/read: arbitrary
Current consumption E-bus: typ. 120 mA
Electrical isolation: 500 V (E-bus/field potential)
Weight: approx. 30 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/see documentation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Approvals/markings: CE
| SKU | EJ6080 |
|---|
