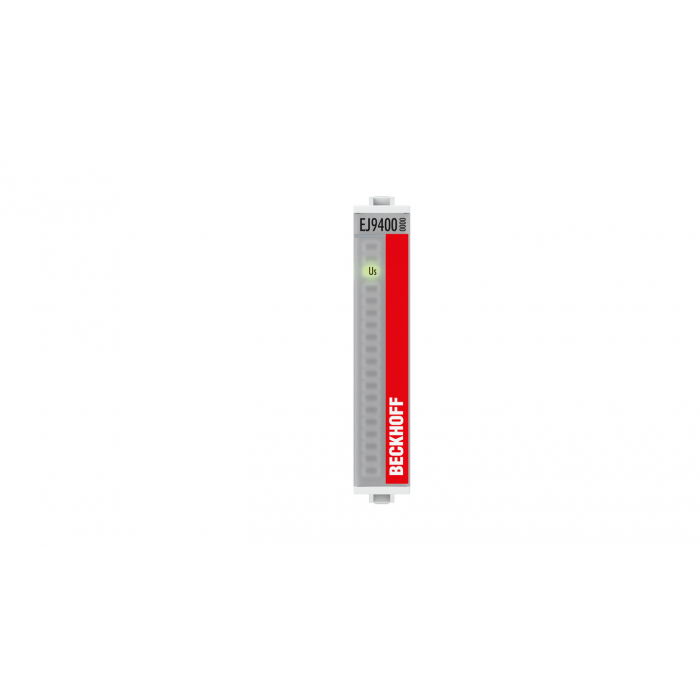

EJ9400 Power supply plug-in module for E-bus
The EJ9400 EtherCAT plug-in module is used in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between the coupler and the module over the E-bus. Each EtherCAT plug-in module draws a certain amount of current from the E-bus (see “Current consumption E-bus” in the technical data). This current is fed into the E-bus by the power supply plug-in module. The maximum output current is 2.5 A.
Technology: power supply module for E-bus
Input voltage: 24 V DC (-15 %/+20 %)
Input current: approx. 10 mA + (E-bus/6.25)
Max. output current: 2.5 A
Current consumption from US: 10 mA + (∑ E-bus current/7.2)
Weight: approx. 30 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL
| SKU | EJ9400 |
|---|
