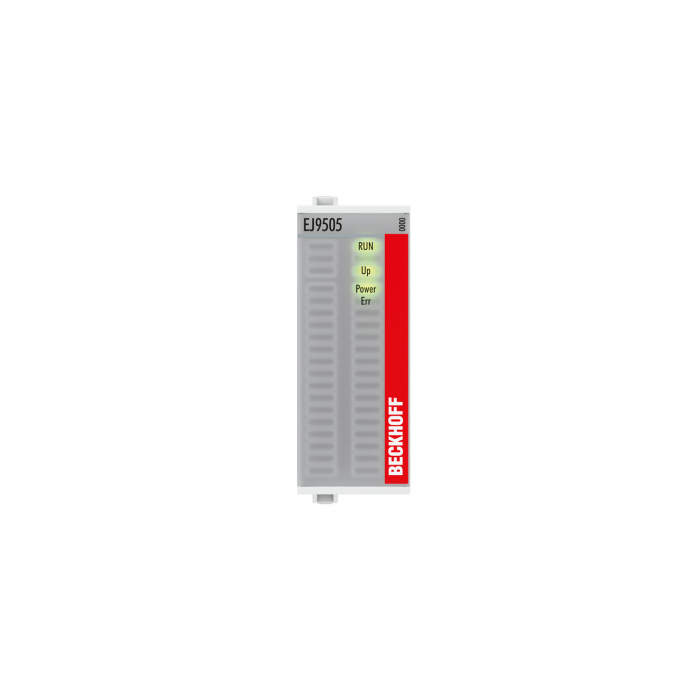

EJ9505 Power supply plug-in module
The EJ9505 EtherCAT plug-in module generates an output voltage of 5 V DC from the (24 V DC) input voltage. This output voltage can be used to supply power to EtherCAT plug-in modules or external sensors. The power LEDs indicate the module's operating state; the error LED indicates short circuit or overcurrent. The input voltage and the output voltage are not electrically isolated.
Technology: power supply module
Short-circuit proof: yes
Input voltage: 24 V DC (-15 %/+20 %)
Output voltage: 5 V DC ±1 %
Output current: 0.5 A
Current consumption E-bus: typ. 70 mA
Diagnostics in the process image: yes
Special features: stabilized output voltage
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL
| SKU | EJ9505 |
|---|
