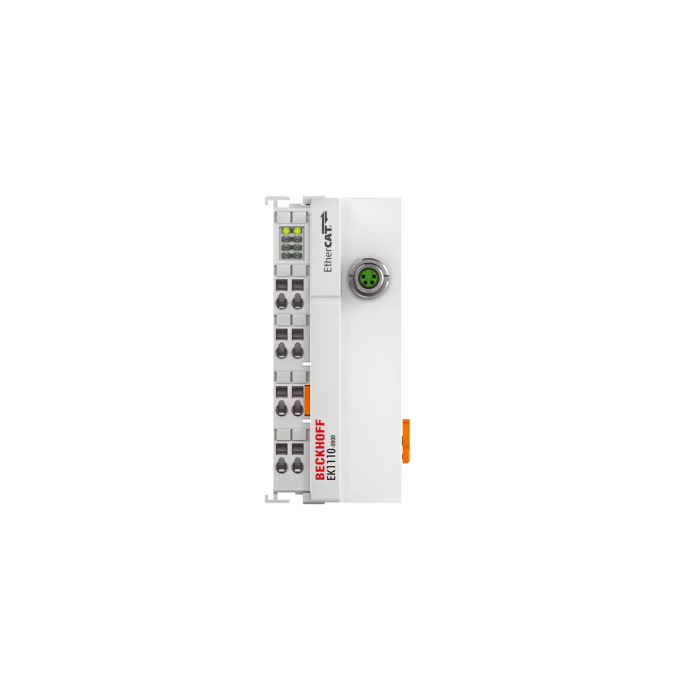

EK1110-0008 EtherCAT extension with M8 connection
The EK1110-0008 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line topology.
Special features:
Connection technology: 1 x M8 socket.
Connection lengths: up to 100 m.
Extension of an EtherCAT network in line topology.
Task within EtherCAT system: conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: 100 m (100BASE-TX)
Protocol: any EtherCAT protocol
Delay: approx. 1 µs
Data transfer rates: 100 Mbit/s
Configuration: not required
Bus interface: 1 x M8, shielded, screw type
Power supply: from E-bus
Current consumption E-bus: typ. 130 mA
Electrical isolation: 500 V (supply voltage/Ethernet)
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL, ATEX
Ex marking: II 3 G Ex nA IIC T4 Gc
| SKU | EK1110-0008 |
|---|
