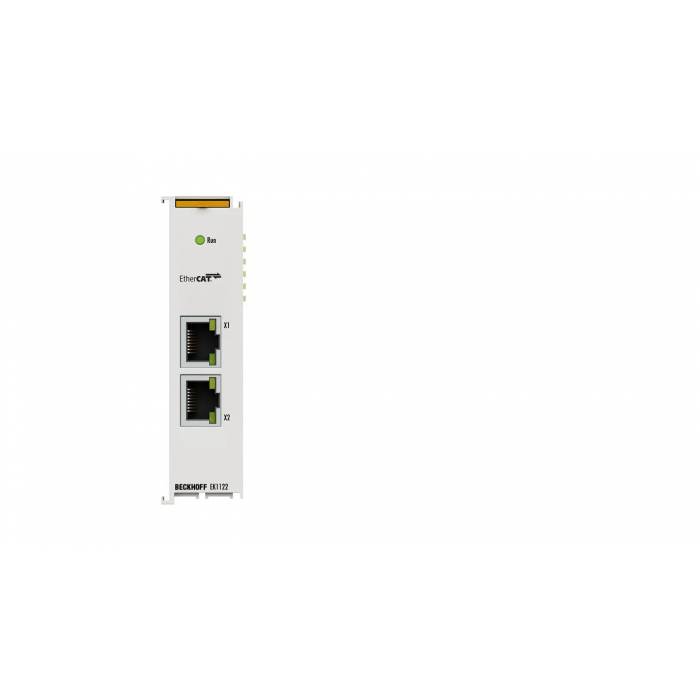

EK1122 2-port EtherCAT junction
The EK1122 2-port EtherCAT junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT star topologies. A modular EtherCAT star hub can be realized by using several EK1122 units in a station.
Special features:
Connection technology: 2 x RJ45 sockets.
Connection lengths: up to 100 m.
Can be used for configuring an EtherCAT star topology.
Task within EtherCAT system: coupling of EtherCAT junctions
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: 100 m (100BASE-TX)
Protocol: EtherCAT
Delay: approx. 1 µs
Data transfer rates: 100 Mbit/s
Configuration: not required
Bus interface: 2 x RJ45
Power supply: from E-bus
Current consumption: typ. 220 mA
Weight: approx. 65 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL, ATEX, IECEx, cFMus
Ex marking ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc/ cFMus: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx ec IIC T4 Gc.
| SKU | EK1122 |
|---|
