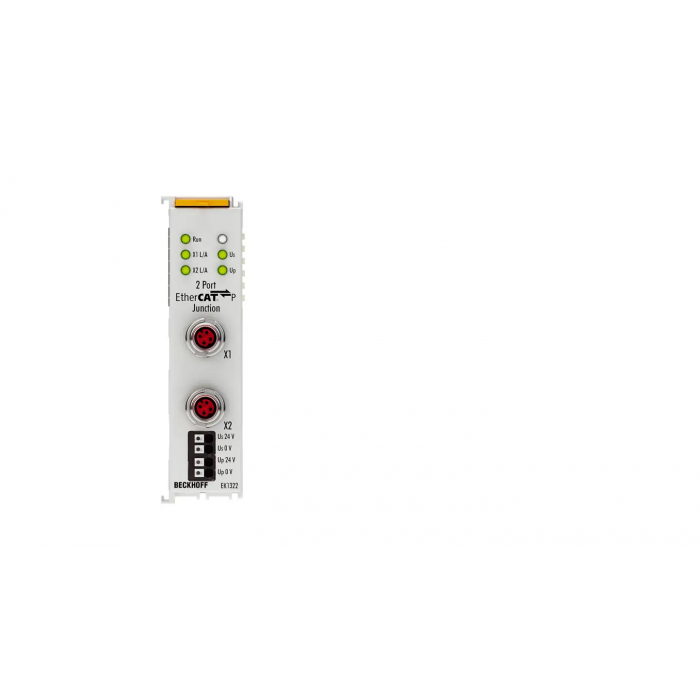

EK1322 2-port EtherCAT P junction with feed-in
The EK1322 2-port EtherCAT P junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT P star topologies. A modular EtherCAT P star hub can be realized by using several EK1322 units in a station.
Special features:
Connection technology: 2 x P-coded M8 sockets.
Can be used for configuring an EtherCAT P star topology.
Task within EtherCAT system: coupling of EtherCAT Terminals to EtherCAT G networks
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: max. 100 m (1000BASE-T)
Number of EtherCAT Terminals: up to 65,534
Type/number of peripheral signals: max. 4.2 GB addressable I/O points
Protocol: EtherCAT
Delay: approx. 1 µs
Data transfer rates: 1 Gbit/s
Configuration: TwinCAT
Bus interface: 2 x RJ45
Power supply: 24 V DC (-15 %/+20 %)
Power contacts: max. 24 V DC/max. 10 A
Electrical isolation: 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature: 0…+55 °C/-25…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE
| SKU | EK1322 |
|---|
