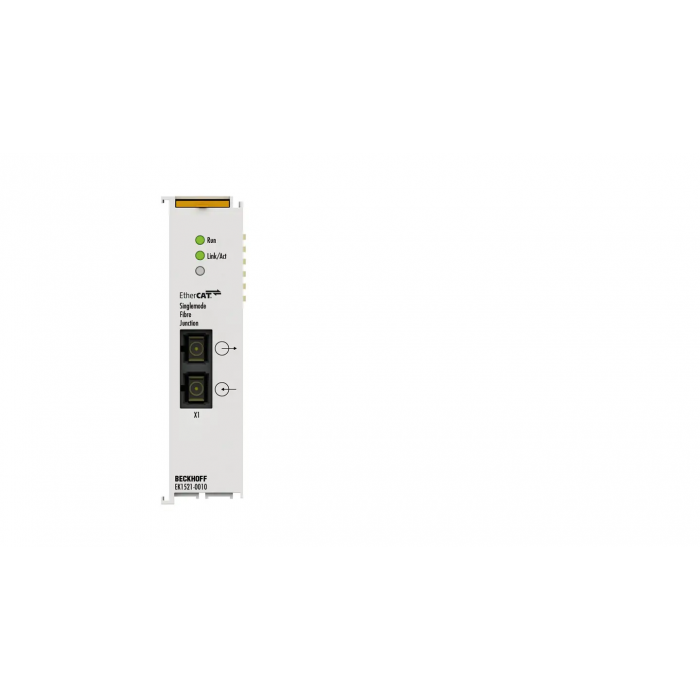

EK1521-0010 1-port EtherCAT fiber-optic junction
The EK1521-0010 1-port EtherCAT junction with single-mode fiber-optic connection can be used in an EtherCAT Terminal segment at any position between EtherCAT Terminals and enables configuration of EtherCAT star topologies with 100BASE FX hardware (glass fiber). A modular EtherCAT star hub can be realized by using several EK1521-0010 units in a station.
Special features:
Connection technology: 1 x single-mode fiber-optic connection via SC duplex.
Connection lengths: up to 20 km.
Can be used for configuring an EtherCAT star topology.
Task within EtherCAT system: coupling of EtherCAT junctions via single-mode glass fiber
Data transfer medium: single-mode glass fiber 9/125 µm (SM)
Distance between stations: max. 20,000 m (100BASE-FX)
Protocol: EtherCAT
Delay: approx. 1 µs
Data transfer rates: 100 Mbit/s
Configuration: not required
Bus interface: 1 x SC Duplex
Power supply: from E-bus
Current consumption E-bus: typ. 350 mA
Weight : approx. 65 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL, ATEX
Ex marking: II 3 G Ex nA IIC T4 Gc
| SKU | EK1521-0010 |
|---|
