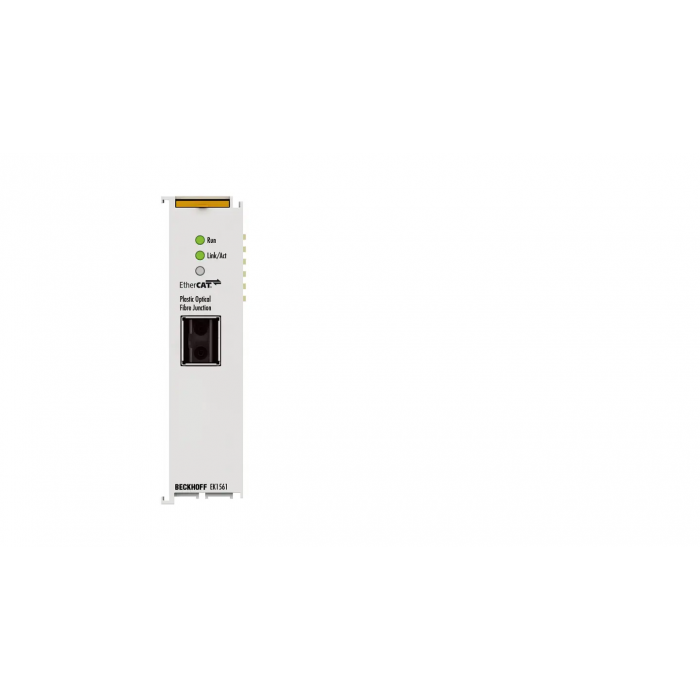

EK1561 1-port EtherCAT plastic optical fiber junction
The EK1561 1-port EtherCAT junction with a POF (polymer optical fiber) connection can be used in an EtherCAT Terminal segment at any position between the EtherCAT Terminals and enables configuration of EtherCAT star topologies with 100BASE FX hardware (POF). A modular EtherCAT star hub can be realized by using several EK1561 units in a station.
Special features:
Connection technology: 1 x POF (polymer optical fiber) connection via versatile link socket.
Connection lengths: up to 50 m.
Can be used for configuring an EtherCAT star topology.
Task within EtherCAT system: coupling of EtherCAT junctions via POF
Data transfer medium: plastic optical fiber (POF)
Distance between stations: max. 50 m (100BASE-FX)
Protocol: EtherCAT
Delay: approx. 1 µs
Data transfer rates: 100 Mbit/s
Configuration: not required
Bus interface: 1 x ZS1090-0008 POF plug
Power supply: from E-bus
Current consumption E-bus: typ. 200 mA
Weight: approx. 65 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
