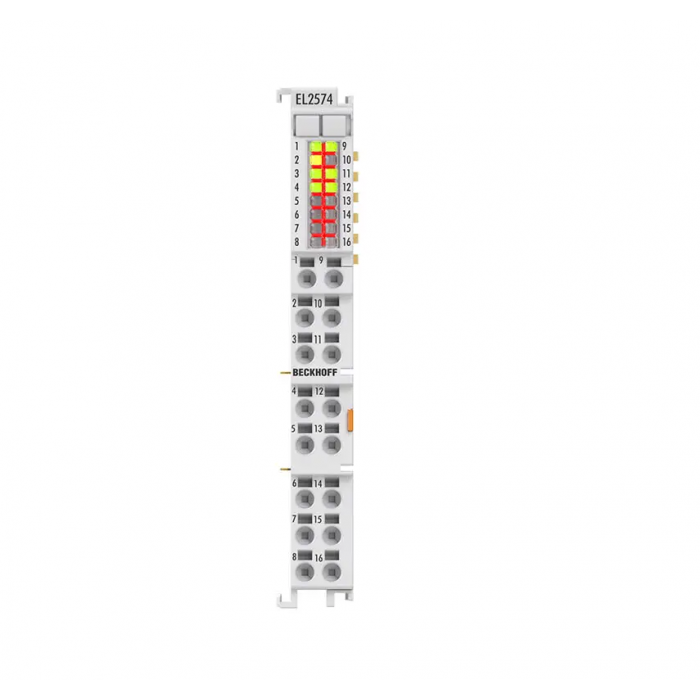

EL2574 EtherCAT Terminal
The EL2574 enables the control of LEDs with an integrated chip. If these pixel LEDs are connected in a strip or matrix formation, all LEDs can be controlled differently to create effects such as running lights or animations.
Recommended use: control of individually addressable LEDs
Number of outputs: 4
Input voltage: 5…24 V DC
Power supply LED: externally
LED protocol: WS2801, WS2803, WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818, APA-101, APA102, APA-104, APA-109, CS8812, GS8206, GS8208, INK1002, INK1003, SK6812, SK6813, SK6822, SM16703, SM16704, TM1803, TM1804, TM1809, TM1812, TM1814, UCS1903, UCS1912, UCS2903, UCS2912, UCS2904, GE8822, HD107S, SK9822
Number of pixels: 2048 pixel per terminal
Current consumption E-bus: typ. 90 mA
Power supply: via the E-bus
Configuration: via TwinCAT System Manager
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE
| SKU | EL2574 |
|---|
