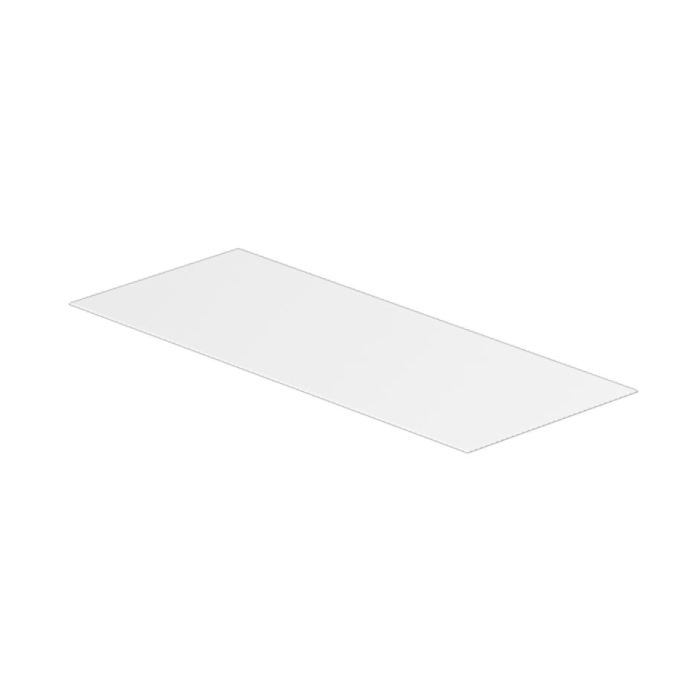

ELS 16/40 MM WS
ELS 16/40 MM WS:
- ELS tags are unique, non-adhesive insertable labels for WKM cable markers or group tag carriers.
- Very clear labelling and outstanding readability are provided by the matt, thin, yet tear-resistant polyester.
- When combined with water-repellent WKM sleeves, the solution ensures exceptionally long-term identification of cables even in hostile settings.
Specifications dimensions and weights:
- Depth: 0.14 mm.
- Depth (inches): 0.006 inch.
- Height: 40 mm.
- Height (inches): 1.575 inch.
- Width: 16 mm.
- Width (inches): 0.63 inch.
- Net weight: 0.171 g.
Temperatures:
- Operating temperature range: -40...150 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Colour: white.
- compatible printer: THM MULTIMARK, THM MULTIMARK PLUS.
- Halogen: No.
- Material: Polyester.
- Number per roll: 2000.
- Operating temperature range: -40...150 °C.
- Operating temperature range, max.: 150 °C.
- Operating temperature range, min.: -40 °C.
- UL 94 flammability rating: HB.
- Version: halogen-free.
- Width: 16 mm.
Conductor and cable markers:
- Halogen: No.
| Brand | Weidmuller |
|---|
