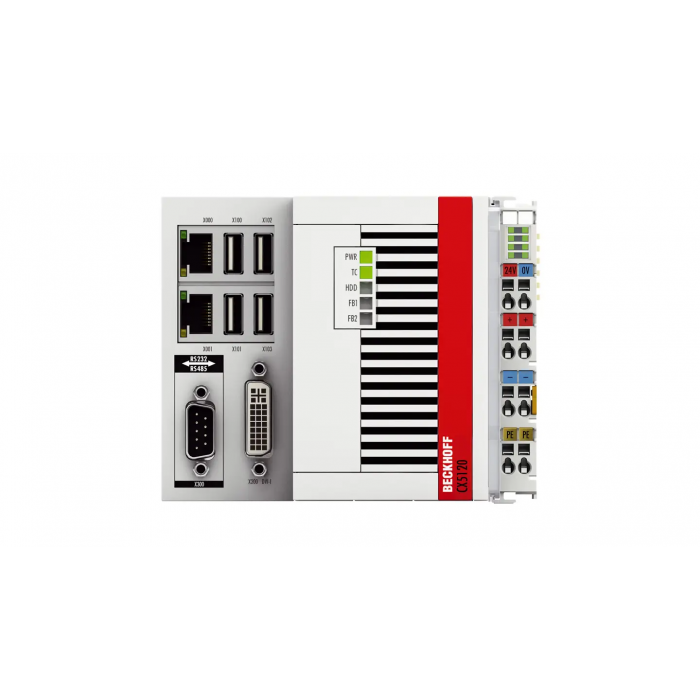

Embedded PC CX5120-0190
The CX5120 has an Intel Atom® single-core processor with a clock rate of 1.46 GHz. The hardware interfaces in this series are oriented and implemented identically to those of the existing CX5000 series. Two independent, Gigabit-capable Ethernet interfaces as well as four USB 2.0 and a DVI-I interface are available. A multitude of further connection options or gateway functions are created by an optional interface, which can be pre-fitted in the factory, as well as the I/O level, which can selectively consist either of E-bus or K-bus terminals.
The CX5120 is characterized by low power consumption and fanless design.
Depending on the installed TwinCAT runtime environment, the CX5120 can be used for implementing PLC or PLC/motion control projects with or without visualization. The execution of motion control applications with interpolating axis movements is also possible.
Like the CX5000, the CX5100 series has a compact design; a modular device with extension modules like in the CX2000 series is not available.
Windows 10 IoT Enterprise 2021 LTSC 64 bit, no TwinCAT
Processor: Intel Atom® E3815, 1.46 GHz
Number of cores: 1
Flash memory: slot for CFast card and microSD card, cards not included
Main memory: 2 GB DDR3 RAM (not expandable)
Persistent memory: integrated 1-second UPS (1 MB on CFast card)
Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock: internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD
Control software: TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition
Power supply: 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus: 2 A
Max. power consumption: 11 W
Max. power consumption (with loading UPS): 18 W
Dimensions (W x H x D): 122 mm x 100 mm x 92 mm
Weight: approx. 975 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE, UL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus
Ex marking: ATEX:
II 3 G Ex nA IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
TwinCAT 3 platform level: Performance (40)
